Valor VL100
- Payments: Accepts EMV chip, magnetic stripe, and contactless payments.
- Screen: 3.5” Color TFT LCD.
- Connectivity: Ethernet and WiFi.
- Security: PCI PTS 5.x certified.
- Receipt: SMS and email options with digital signature captured
- Display: Full transaction information display
- Features: Dual MID supported technology Cash discounting, Dual pricing, Surcharging Auto connection failback procedure Bill spliting Built-in customer feedback rating system EBT enabled
Overview

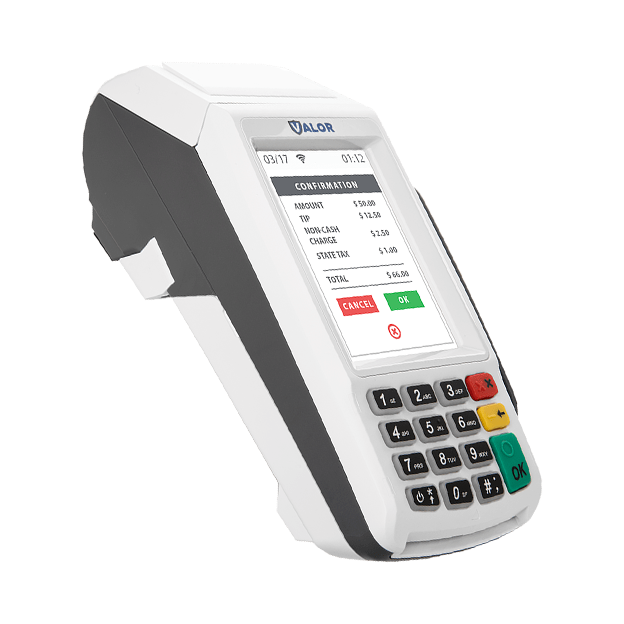

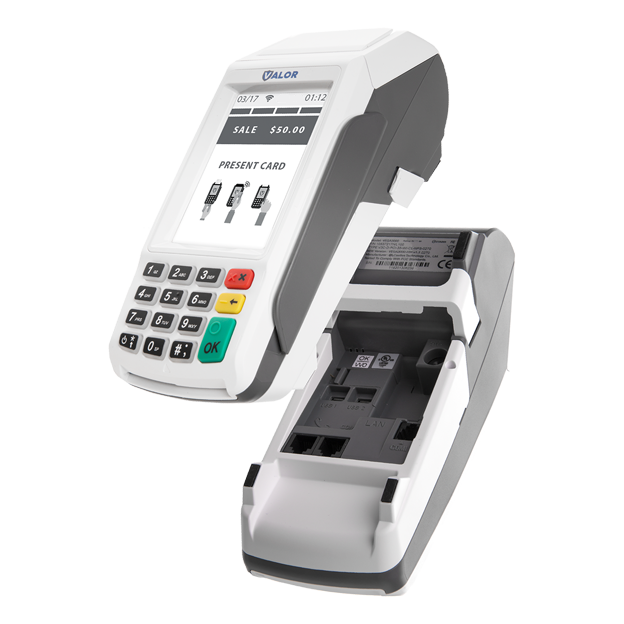

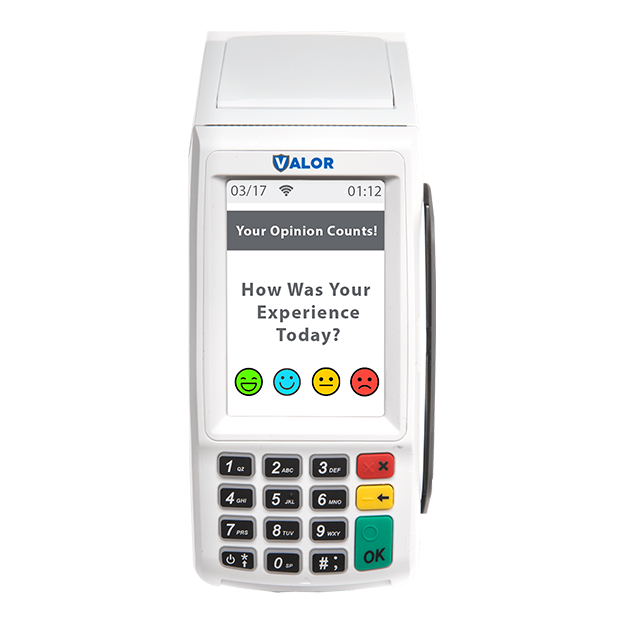

The VL100 is a robust countertop POS terminal that supports EMV chip, magnetic stripe, and contactless payments. It features a 3.5″ color TFT LCD display providing connectivity options and it ensures secure transactions.
Specifications
- Operating System: Secure Linux-based OS
- Processor: 32-bit ARM Secure Microprocessor
- Memory: 128MB Flash, 64MB DDR RAM
- Display: 2.8” Color TFT LCD (240 x 320 pixels)
- Magnetic Stripe: ISO 7810, 7811, 7813 Triple track, bi-directional
- Contact Card: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1
- Contactless: ISO 14443 Type A, B | NFC (supports Mifare & Sony FeliCa, Working Frequency 13.56 MHz)
- Camera: Not applicable
- Barcode Scanner: Not applicable
- Connectivity: Wi-Fi, Bluetooth, USB, Ethernet
- Printer: Built-in thermal dot receipt printer
- Paper Size: 2-1/4" x 50' (57mm x 15.2m)
- Additional Features: Digital Signature Capture, SMS and Email Receipt Options, Bill Splitting, Built-in Customer Feedback Rating System
Downloads
Product Specification
VL100 Gen Specs
Quick Reference Guide
VL100 Gen QRG
