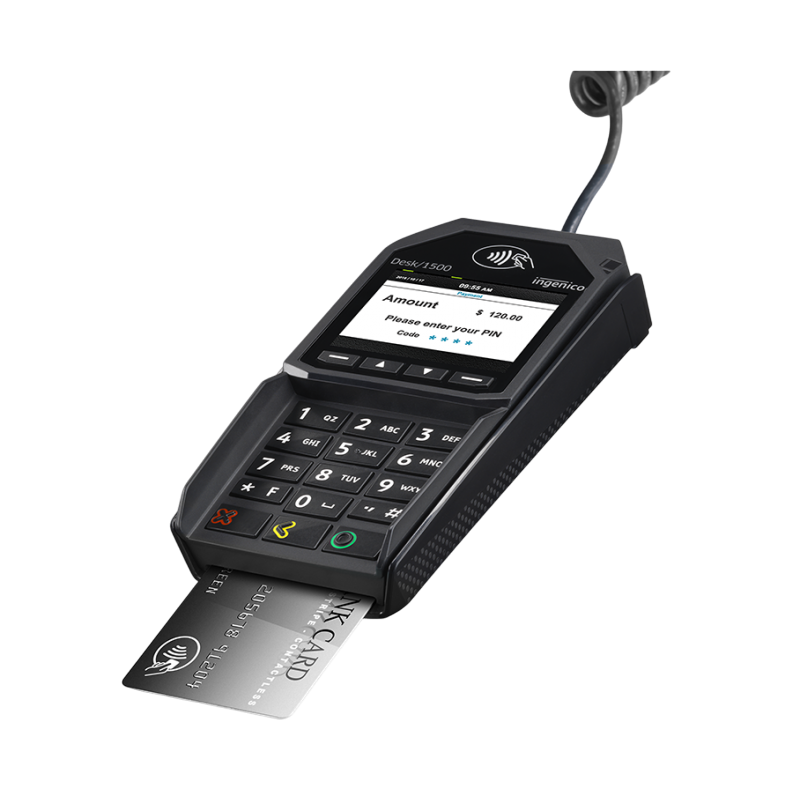

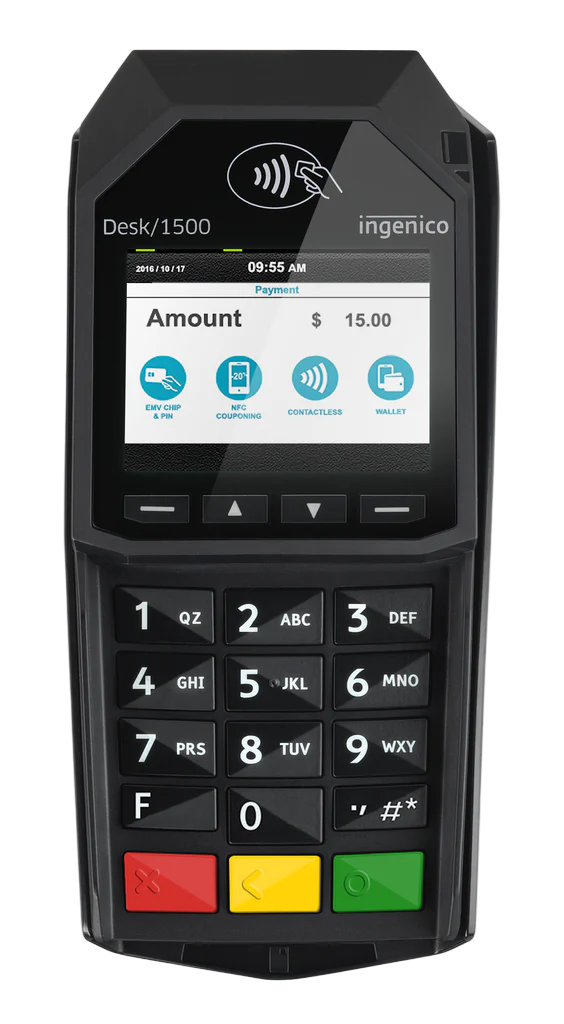

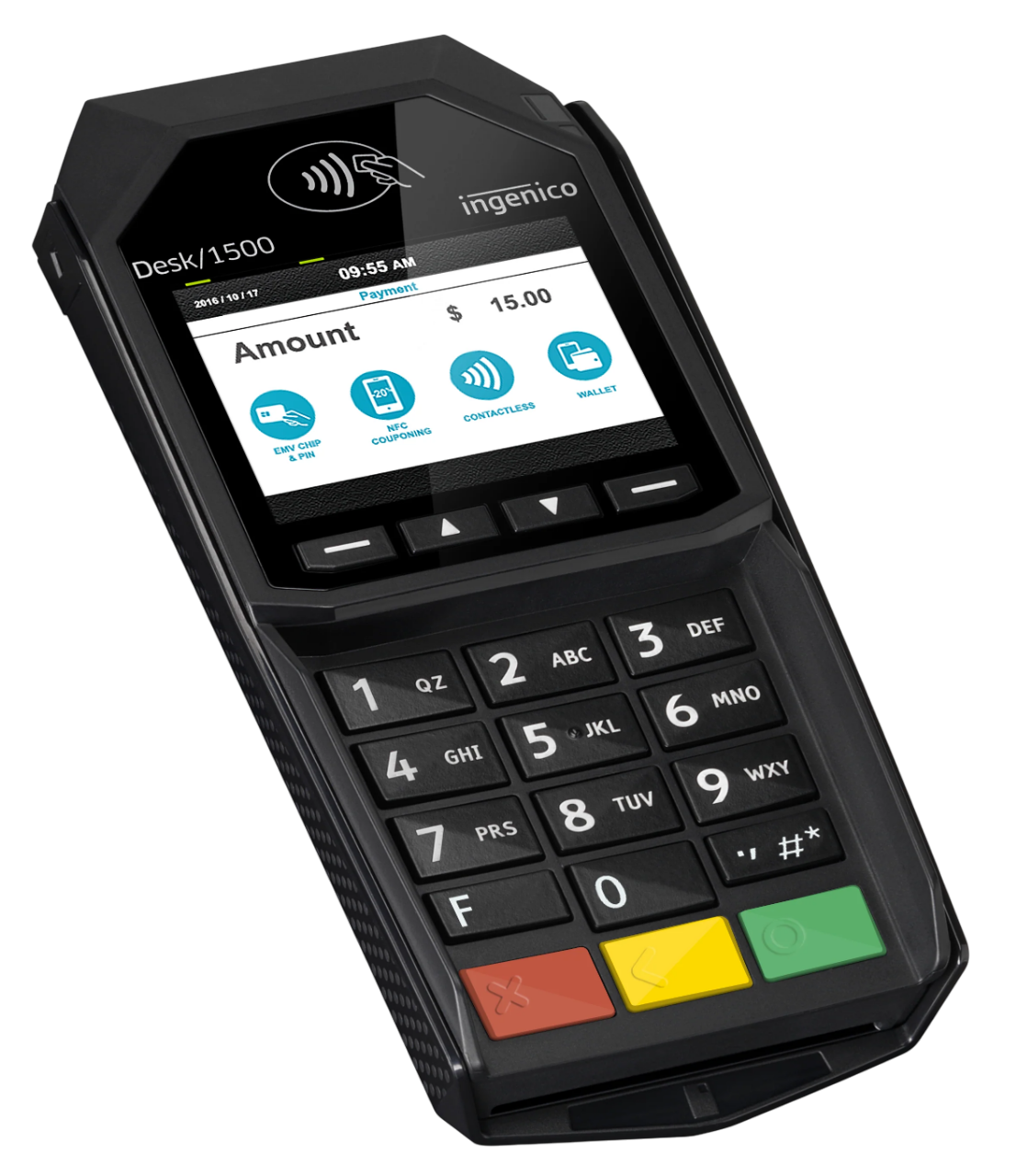

Ingenico Desk 1500
- Multi-Payment Support: Accepts EMV chip & PIN, magnetic stripe, and NFC/contactless payments including mobile wallets.
- Clear Display: Features a 2.8" QVGA color LCD screen with LED backlight for easy user interaction.
- Durable Keypad: Equipped with a 15-key tactile backlit keypad with raised markings for secure PIN entry.
- Secure Design: PCI PTS 5.x certified and compliant with the latest payment industry standards.
- Compact Footprint: Small, space-saving form factor ideal for tight countertop setups.
- Plug-and-Play: Connects easily via USB to compatible Ingenico Desk series terminals (e.g., Desk/3500, Desk/5000).
- Privacy Option: Supports optional privacy shield for added customer PIN security.

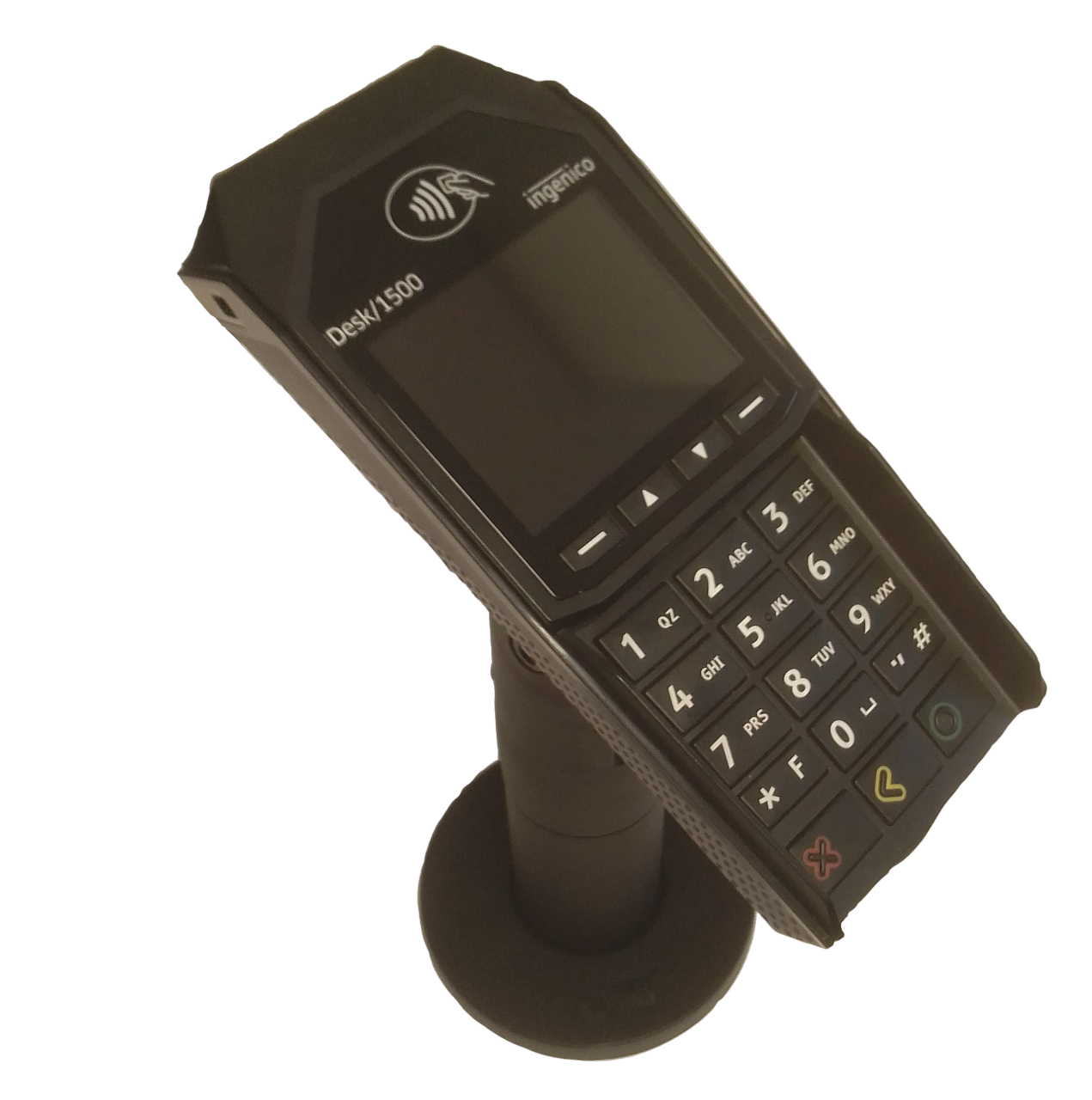

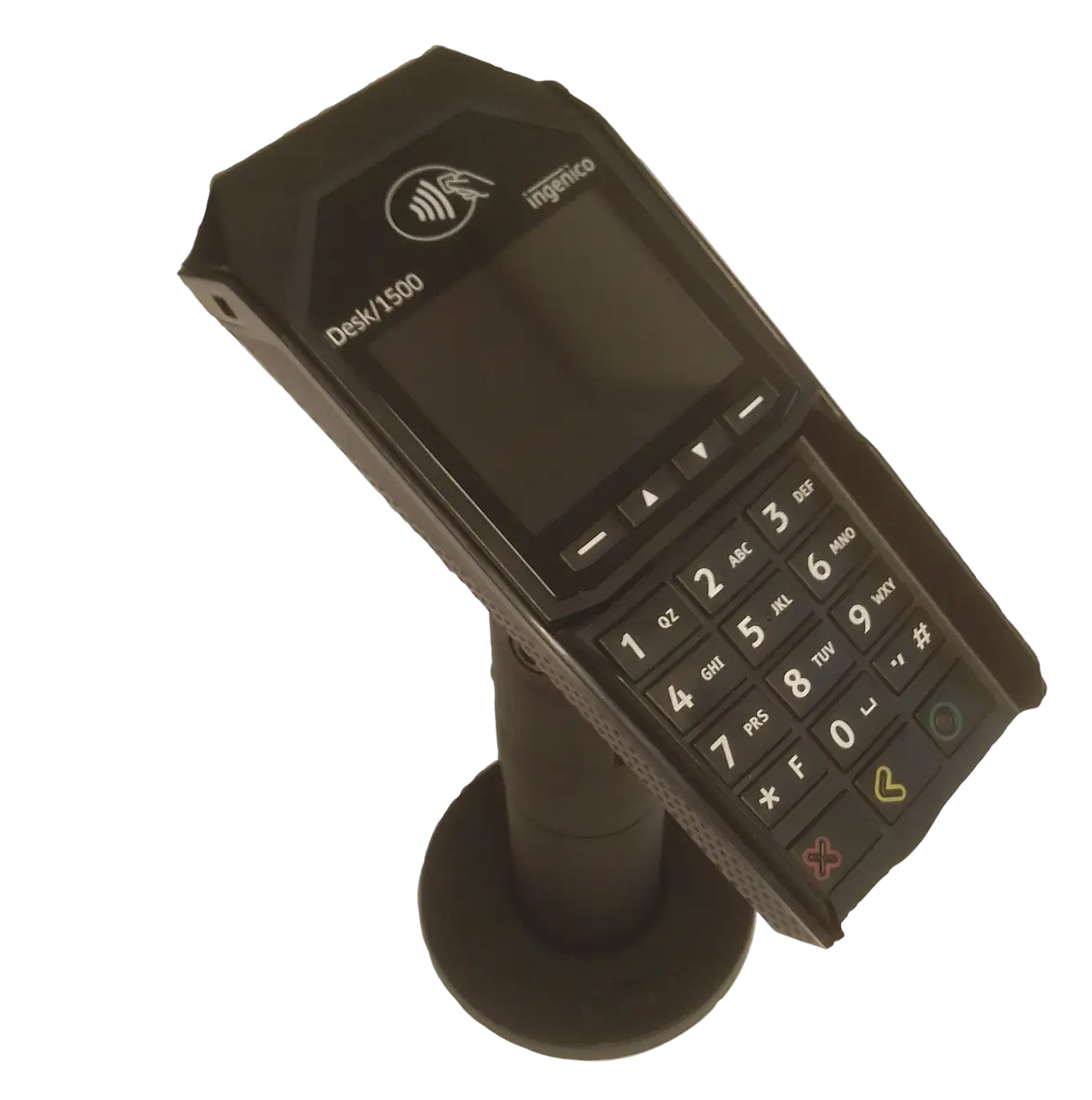

- Mounting Compatibility: Can be used freestanding or mounted with third-party accessories.
Overview
The Ingenic Desk 1500 enhances countertop payment experiences with a vibrant QVGA color display, tactile keypad, and full payment support. With compact dimensions and plug-and-play USB connectivity, it seamlessly integrates into retail environments while delivering strong security via PCI PTS certification and EMV compliance.
Specifications
- Operating System: Telium TETRA
- Processor: ARM Cortex-A5
- Memory: 128 MB Flash / 128 MB RAM
- Display: 2.8″ color QVGA LCD (320 × 240 pixels) with LED backlight
- Touch Input: Physical 15-key tactile keypad (backlit, raised for accessibility)
- EMV Smart Card: ISO 7816 compliant (500k insertions)
- Magnetic Stripe Reader: Triple track, bi-directional (500k swipes)
- Contactless: EMV Level 1 certified; supports NFC and mobile wallets
- Connectivity: USB (host/client) for connection to Desk/Series terminals
- Power Supply: USB-powered (via host terminal); no standalone power needed
- Dimensions: 7.08" x 3.26" x 1.69" (180 mm x 83 mm x 43 mm)
- Weight: ~0.56 lbs (255 g)
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Relative Humidity: 5% to 90% (non-condensing)
- Security: PCI PTS 5.x certified, EMV L1/L2 approved
