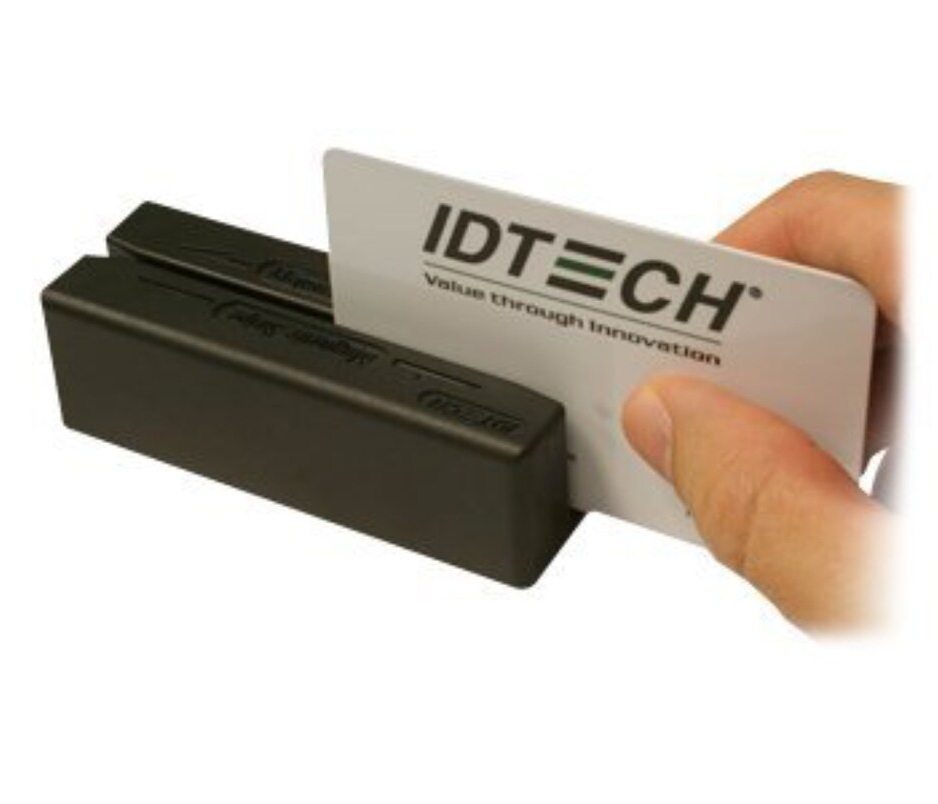

ID TECH MiniMag Duo

  • Dual-Head Design: Enables bidirectional card swiping, increasing flexibility and ease of use.
  • Triple Track Reading: Reads up to three tracks of magnetic stripe data, accommodating a wide range of card types.
  • USB Connectivity: Offers both USB Keyboard Emulation and USB HID interfaces for versatile integration.
  • Compact Size: Measures approximately 90mm in length, suitable for installations with limited space.
  • Durability: Designed for a minimum of 1,000,000 card swipes, ensuring long-term reliability.
  • Visual and Audio Indicators: Equipped with LED and beeper to signal successful reads.
  • Mounting Options: Features embedded threaded inserts for secure mounting.

Overview

The MiniMag Duo is engineered for environments where space is at a premium but reliable card reading is essential. Its compact form factor (approximately 90mm in length) makes it suitable for various applications, including retail, hospitality, and kiosk systems. The reader’s dual-head design enhances usability by allowing card swipes in either direction, reducing user error and improving transaction efficiency.


Specifications
  • Model: IDMB-334112B
  • Dimensions: 3.5"" (L) x 1.3"" (W) x 0.4"" (H)
  • Weight: Not specified in the provided sources.
  • Power Requirements: +5 VDC from USB port; 40 mA max current draw
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -30°C to 70°C (-22°F to 158°F)
  • Humidity: Maximum 95% non-condensing
  • Swipe Speed: 3 to 60 inches per second
  • Certifications: CE & FCC Class A

Downloads
ID TECH MiniMag Duo Product Details
ID TECH MiniMag Duo Quick Start Manual
