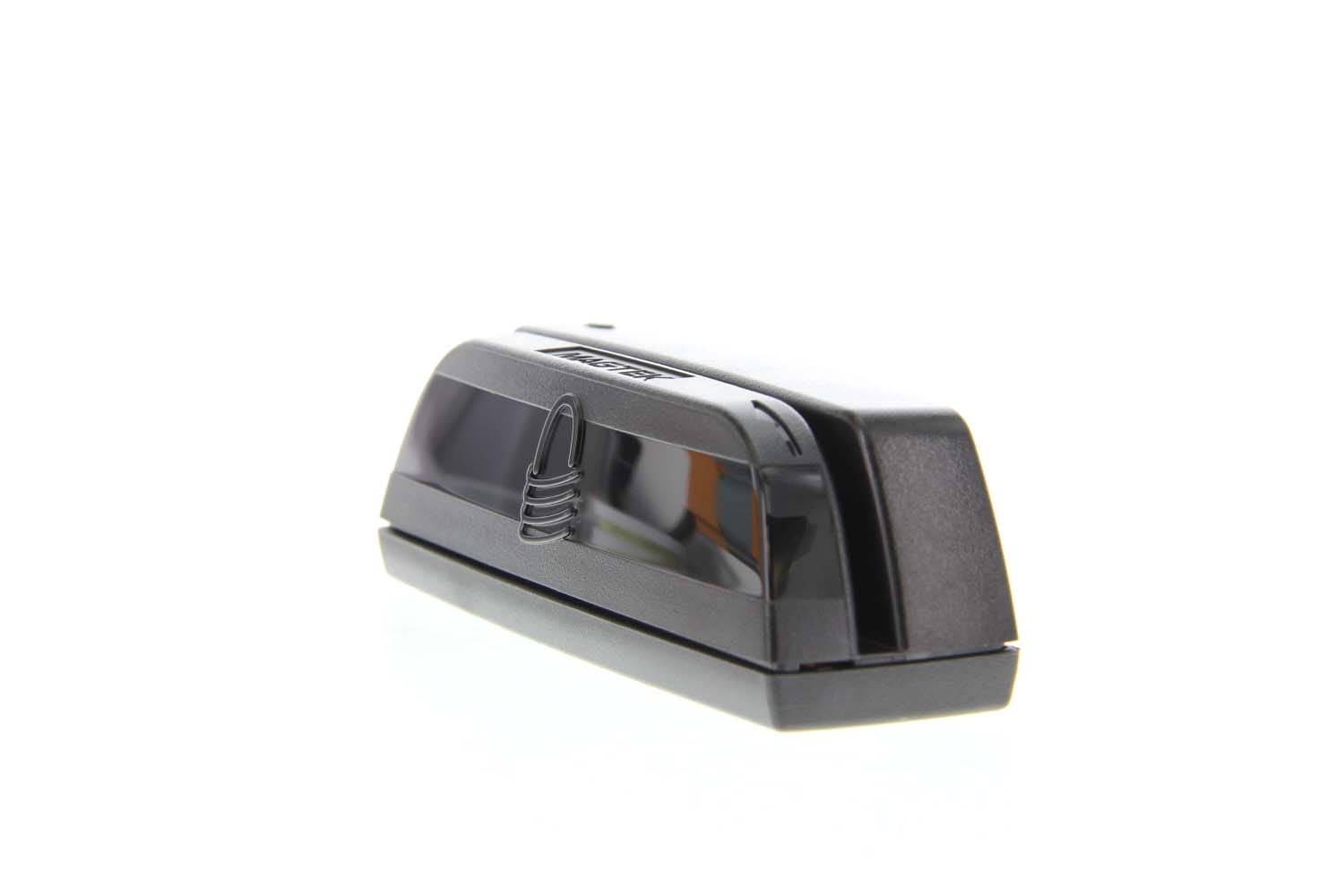

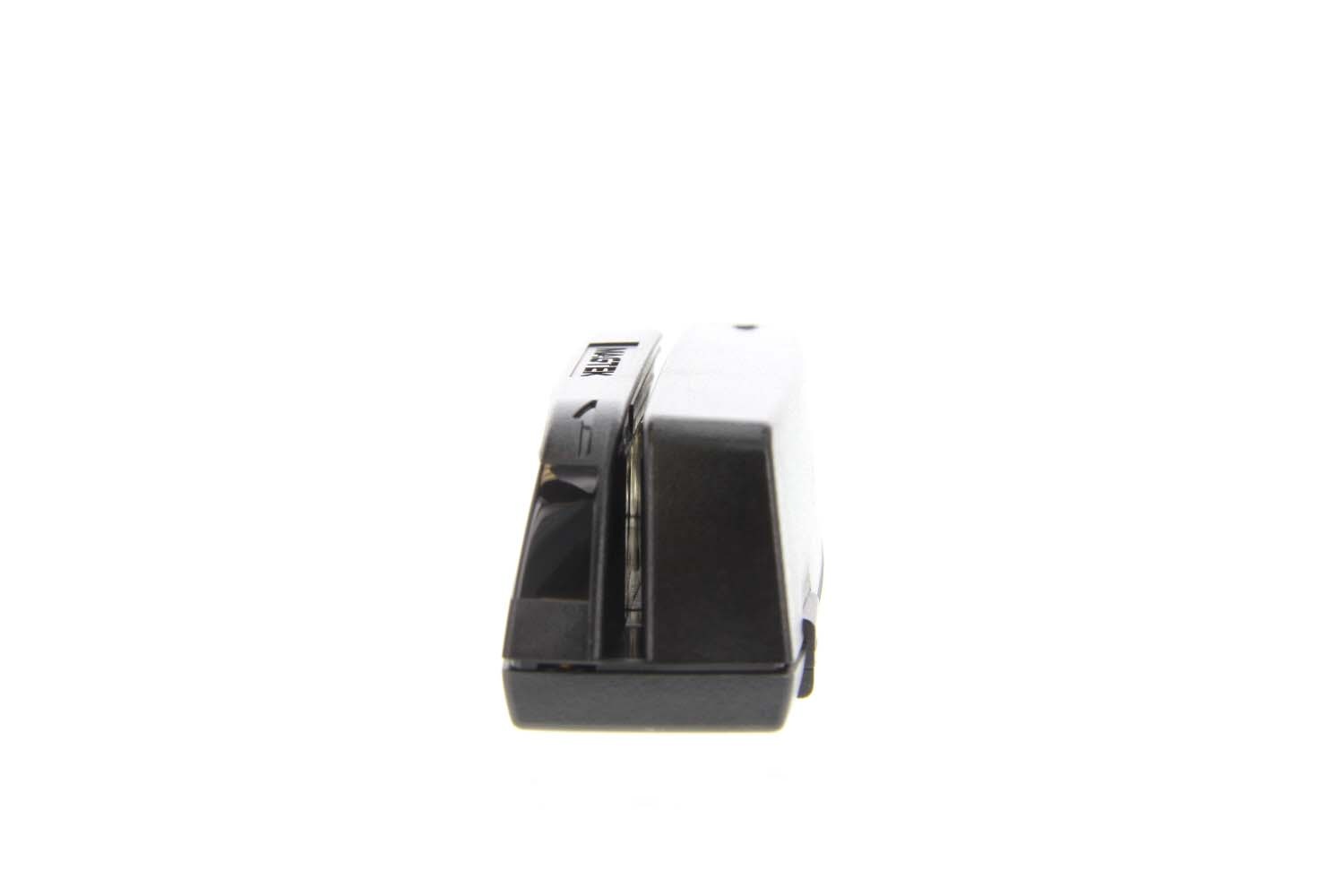

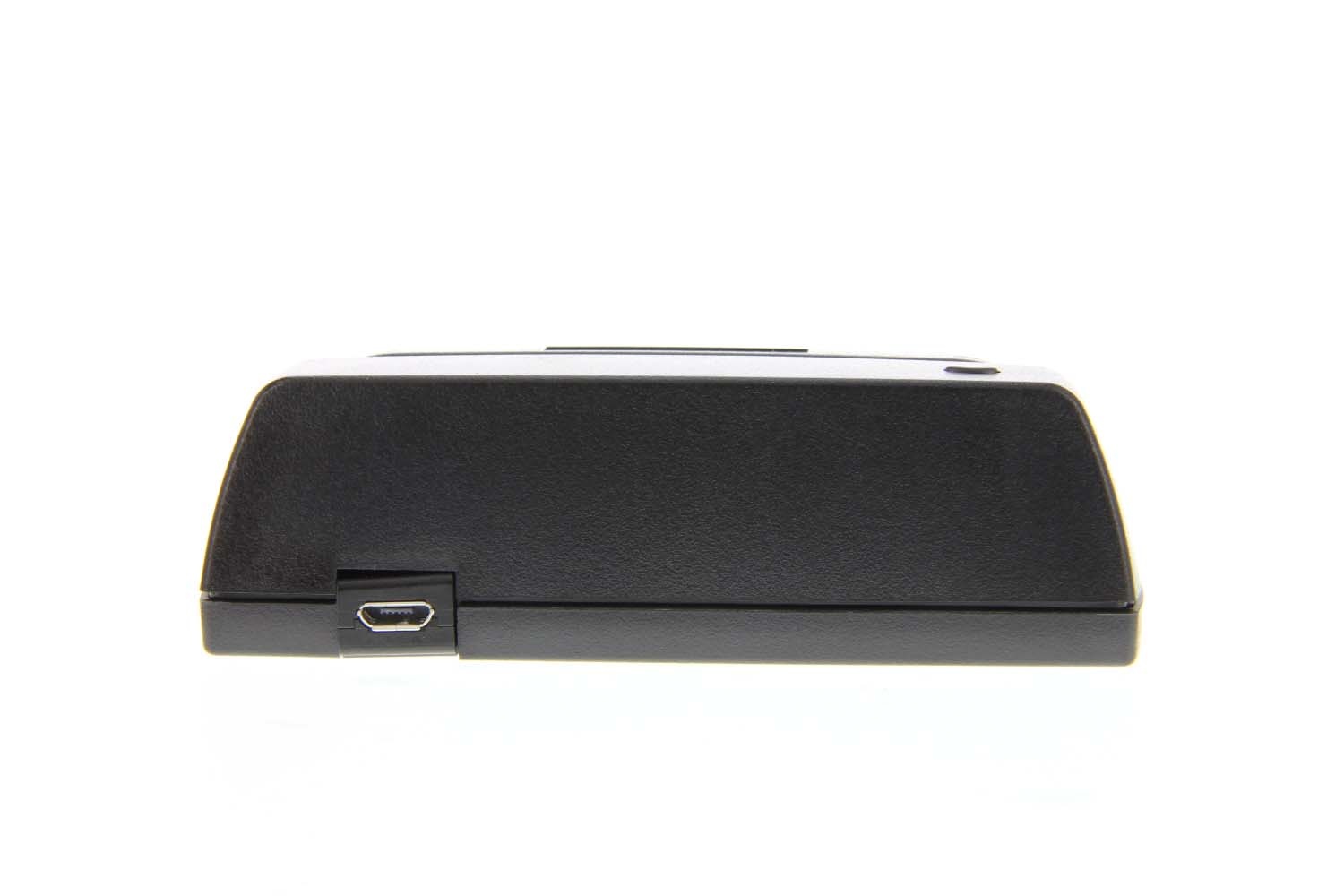

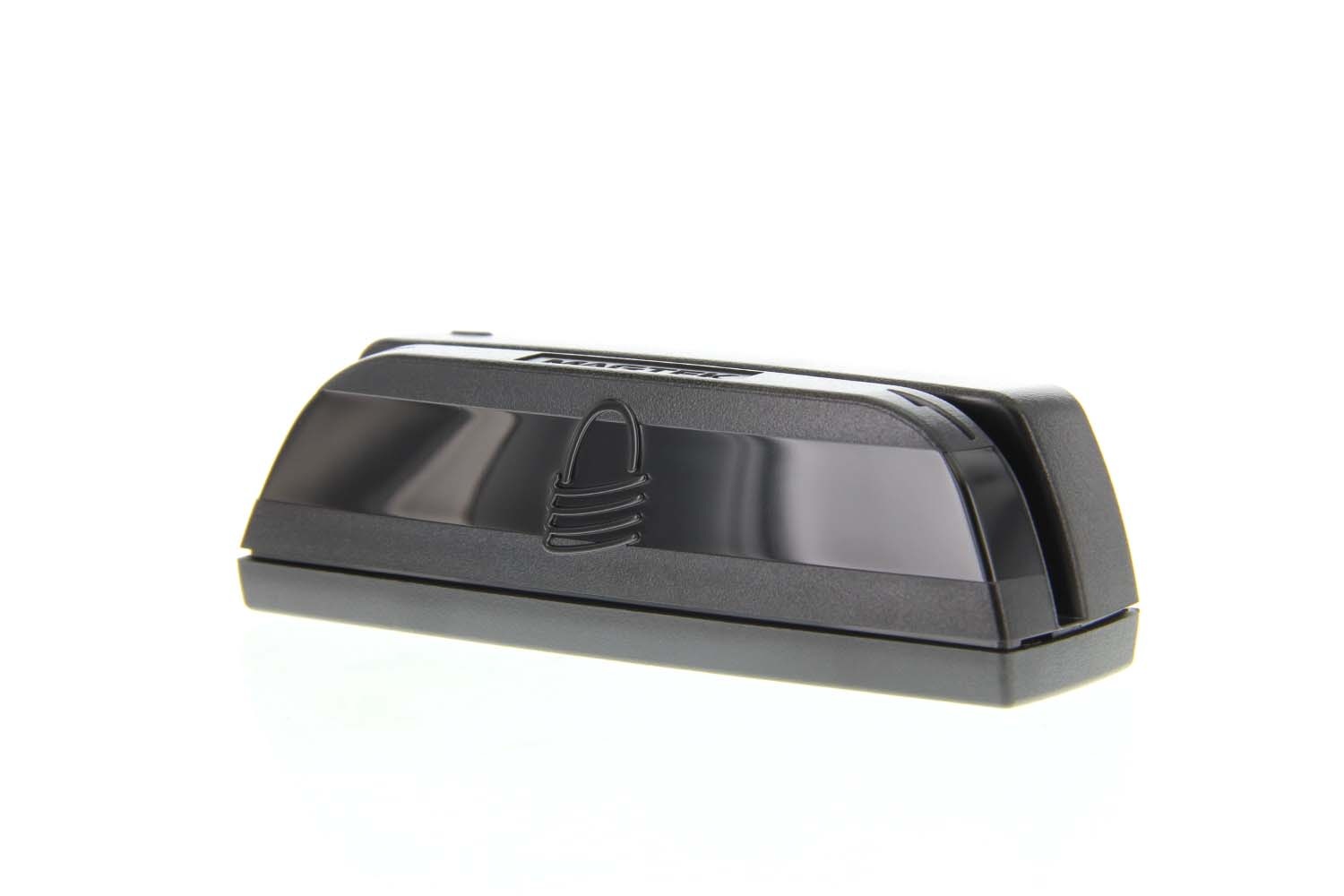

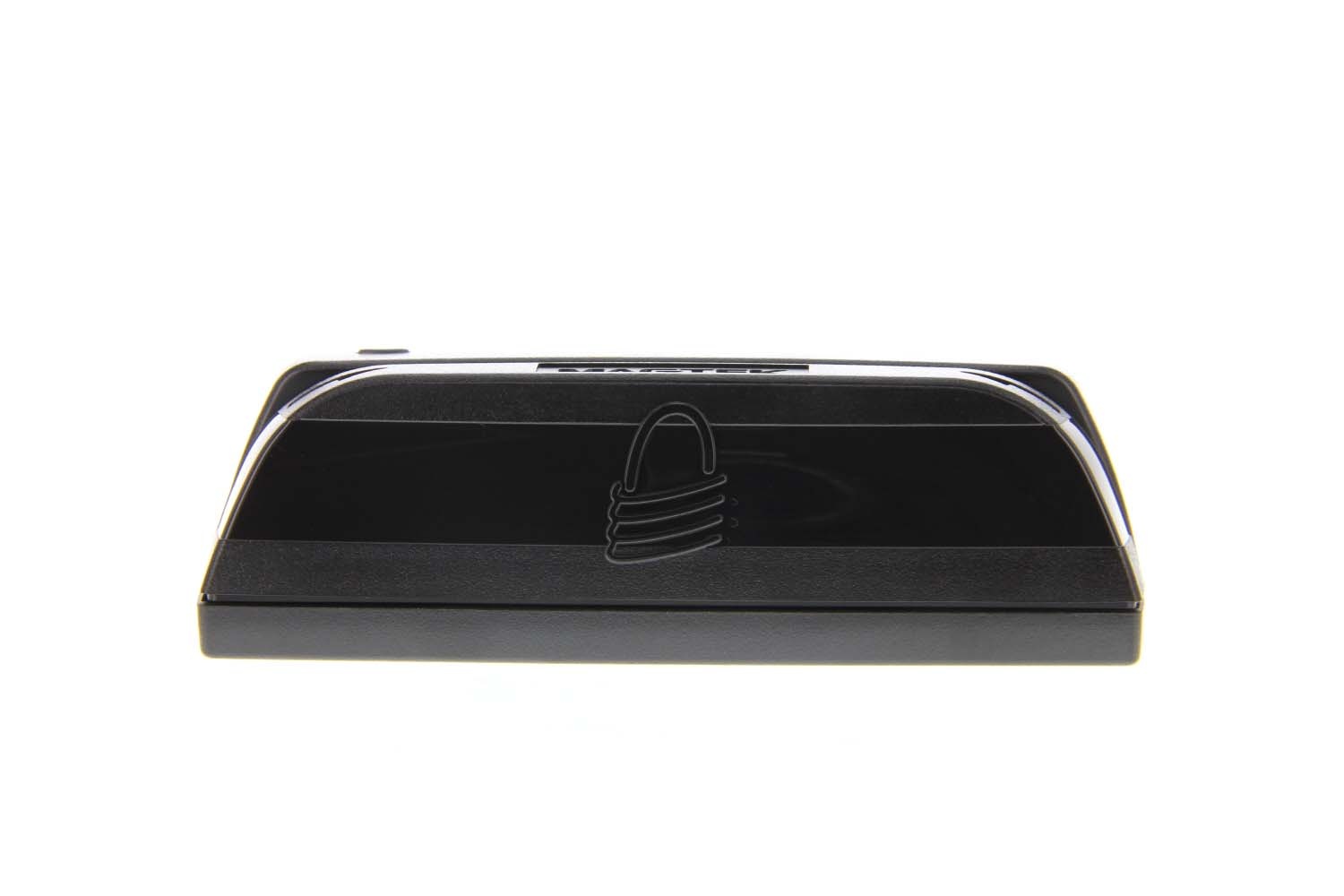

MagTek Dynamag

  • Secure Data Encryption: Encrypts card data instantly using 3DES and DUKPT key management.
  • Compact & Durable: Small form factor with rugged design for over 1 million swipes.
  • Bi-Directional Swipe: Reads card data regardless of swipe direction.
  • USB Connectivity: Simple setup using HID or Keyboard Emulation (KBM) interface.
  • Status LED: Provides visual feedback on device readiness and status.
  • Plug-and-Play: No external power supply required; ideal for POS systems.
  • Mountable Base: Optional mounting hardware available for secure installation.

Overview

The MagTek Dynamag is a USB-powered, secure card reader authenticator (SCRA) designed for use in PCI-compliant point-of-sale systems. Compact yet robust, the Dynamag utilizes MagneSafe® Security Architecture to encrypt data immediately upon swipe using 3DES and DUKPT key management. With its plug-and-play USB interface and minimal footprint, it’s ideal for desktops, counters, and integrated systems where secure magnetic stripe reading is essential.


Specifications
  • Model: 21073062
  • Standards Supported: ISO 7810, ISO 7811, AAMVA
  • Encoding Method: Coherent Phase Frequency Modulation (F2F)
  • Card Read Speed: 4 to 60 inches per second (10.1 to 152.4 cm/s)
  • Power Supply: 5V DC via USB port
  • Power Consumption: Max 110 mA
  • Interface: USB Keyboard Emulation (HID)
  • Connector Type: USB Type A
  • Dimensions: 3.94" (L) x 1.28" (W) x 1.23" (H) (100 x 32.5 x 31.2 mm)
  • Weight: Approximately 4.5 oz (127.5 g)
  • Cable Length: 6 ft (1.83 m)
  • Operating Temperature: 32°F to 131°F (0°C to 55°C)
  • Storage Temperature: -22°F to 158°F (-30°C to 70°C)
  • Security: PCI DSS-compliant
  • Certifications: FCC, CE, UL, RoHS

Downloads
MagTek Dynamag Product Details
MagTek Dynamag Technical Reference Manual
