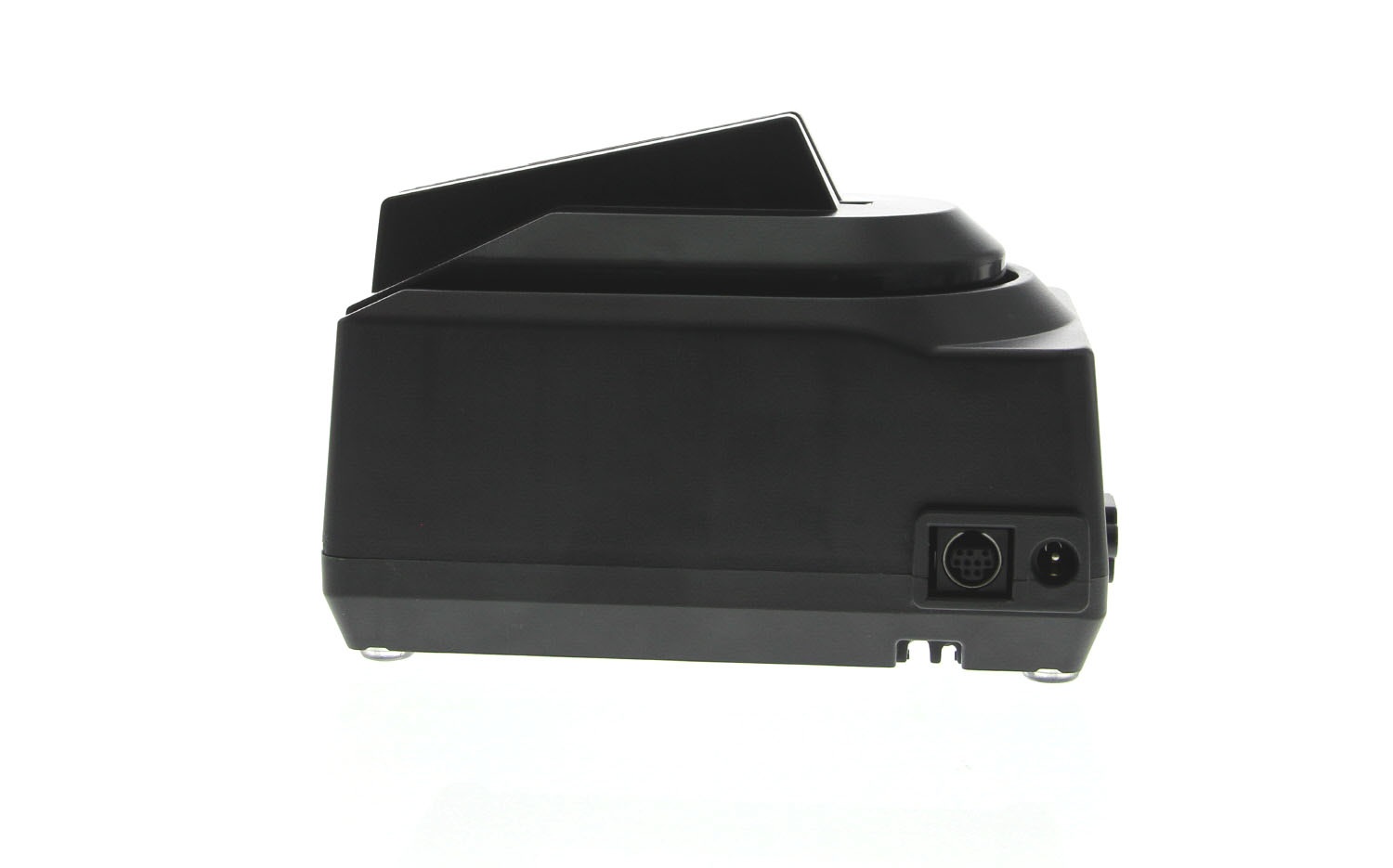

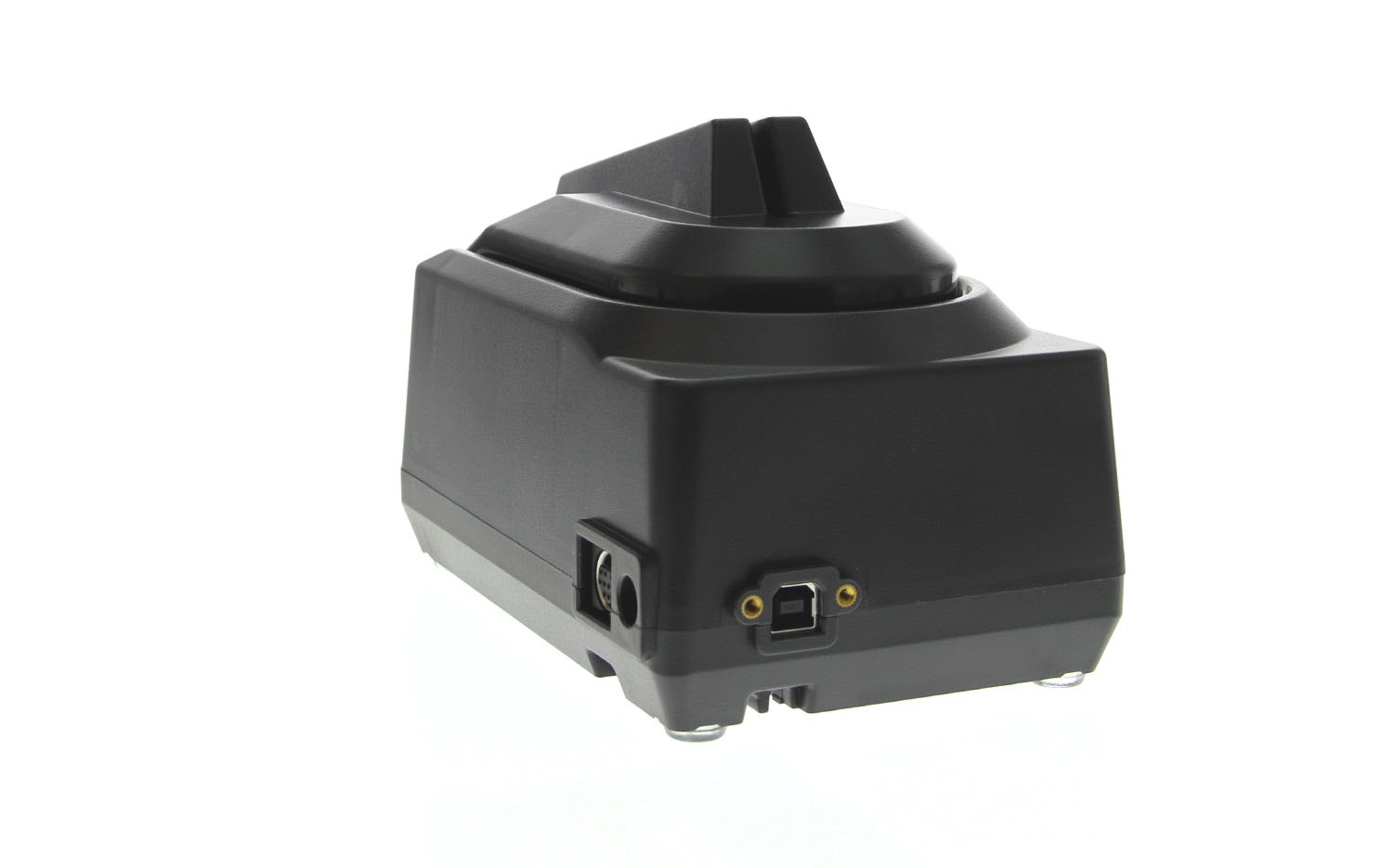

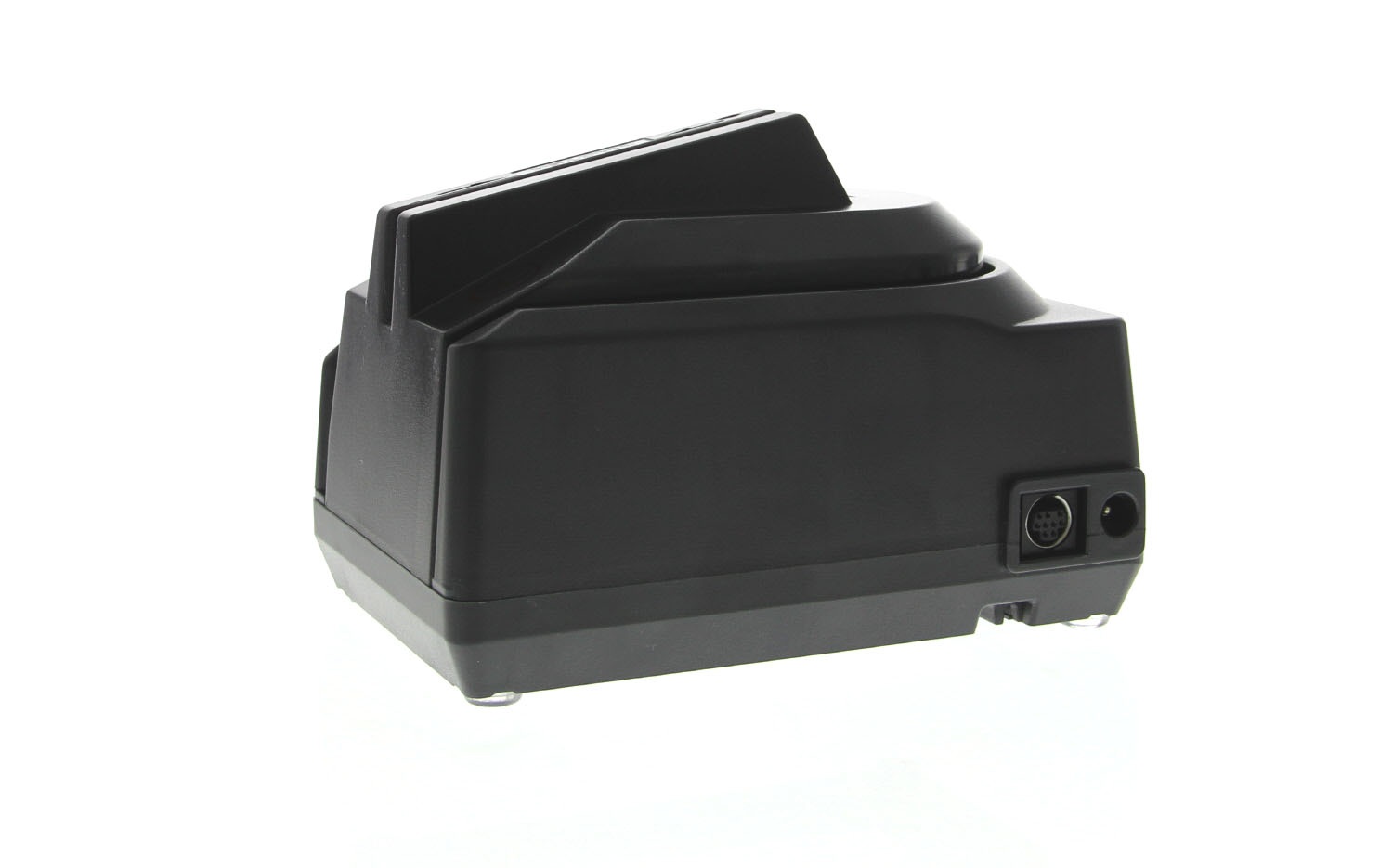

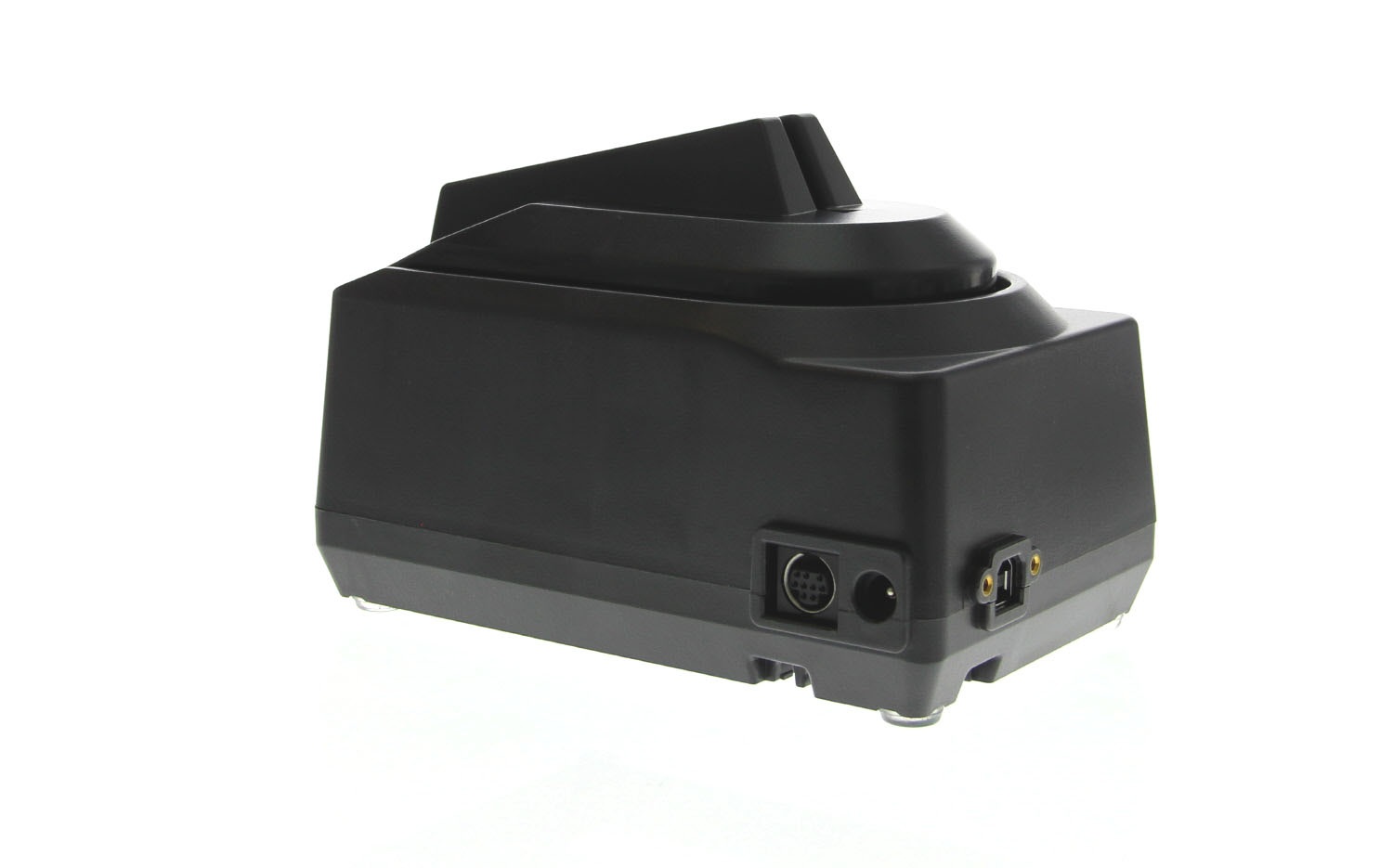

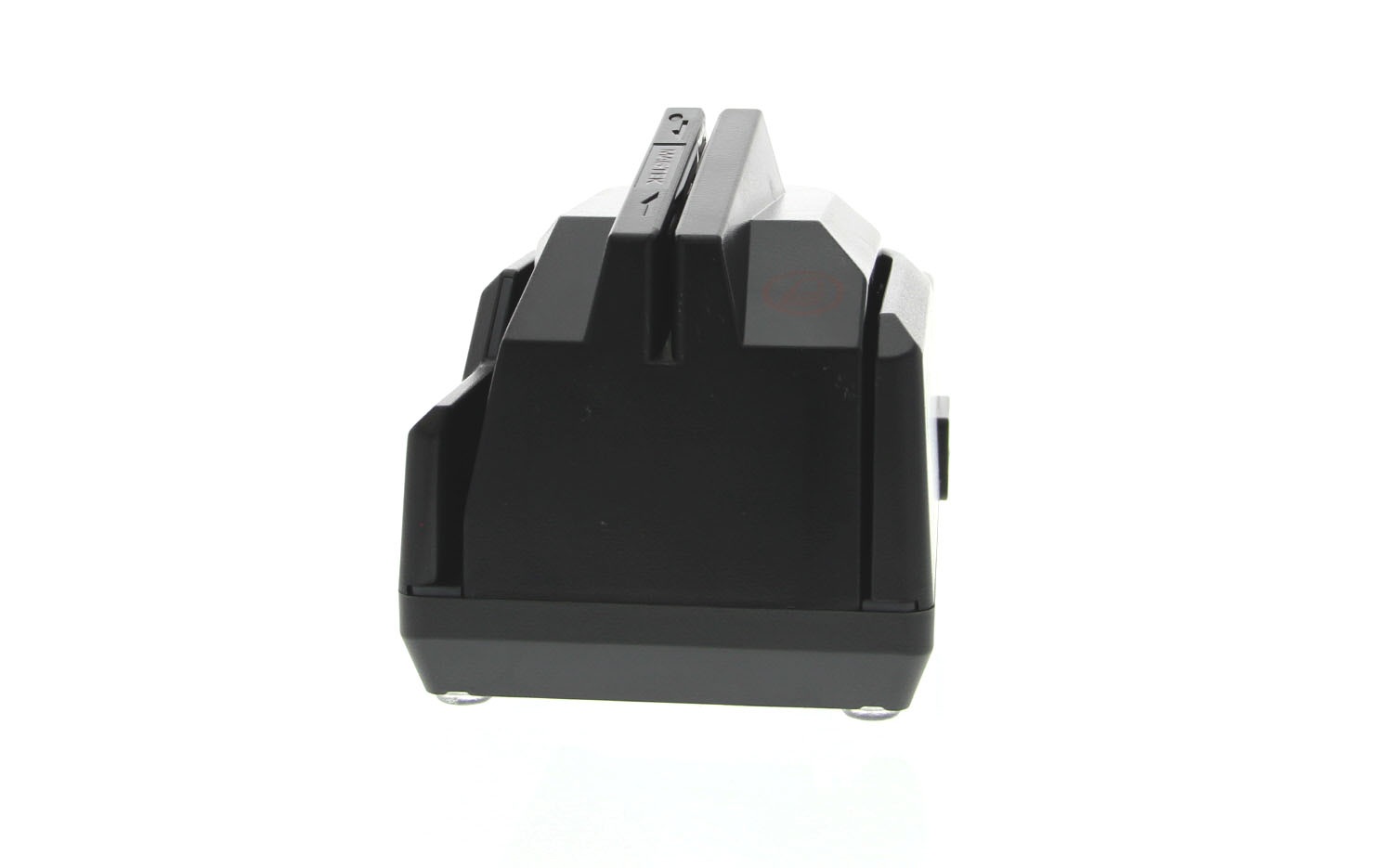

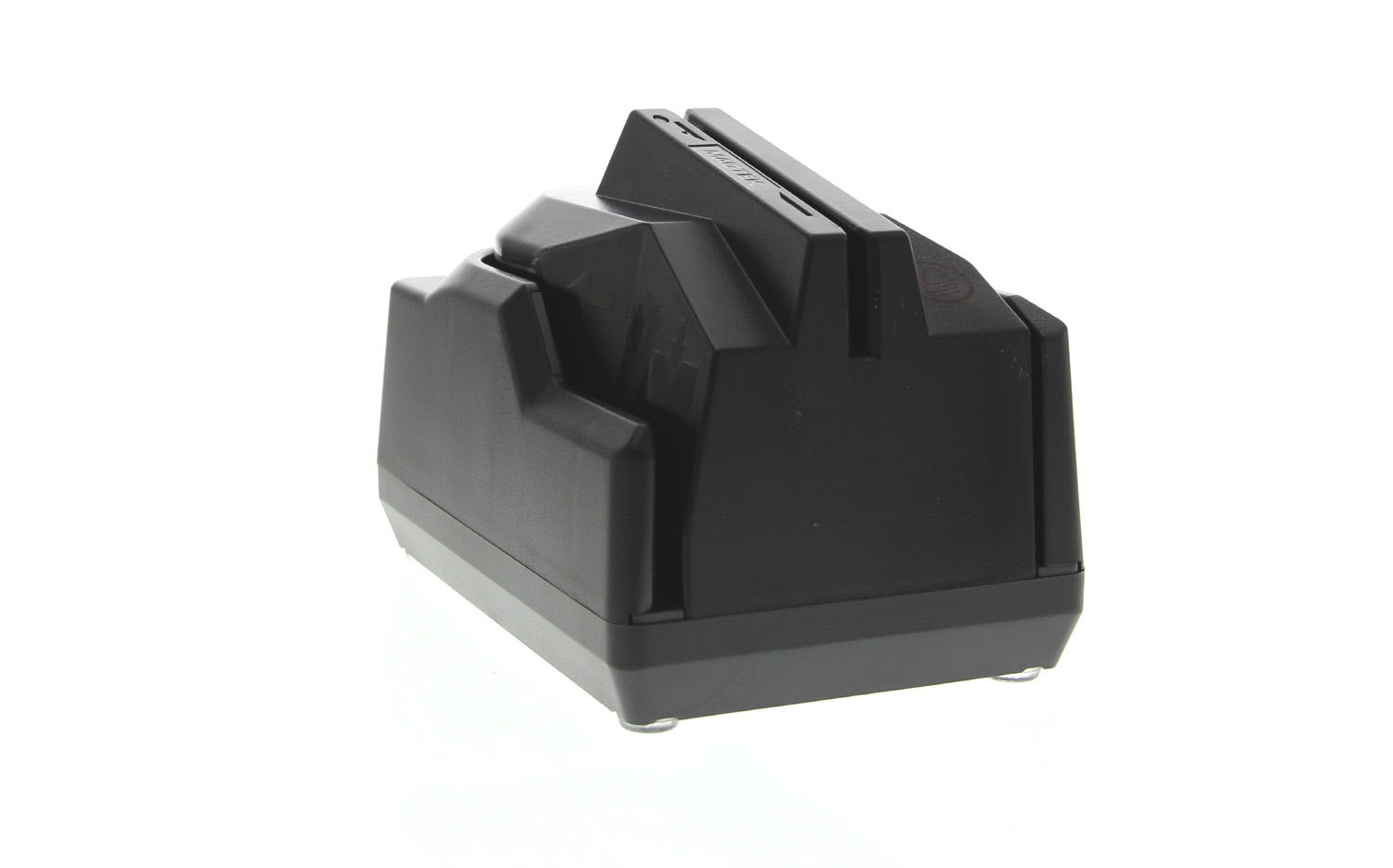

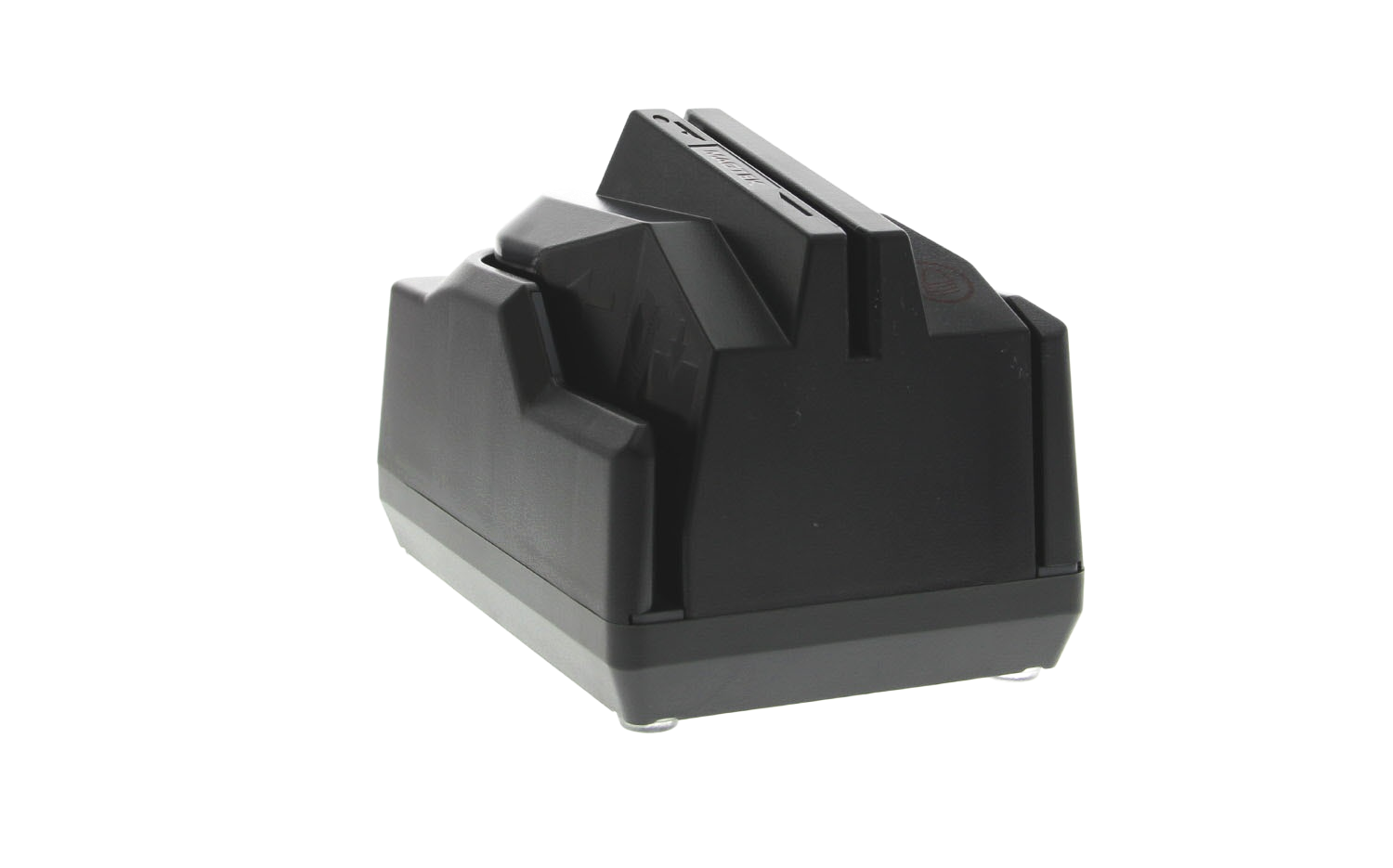

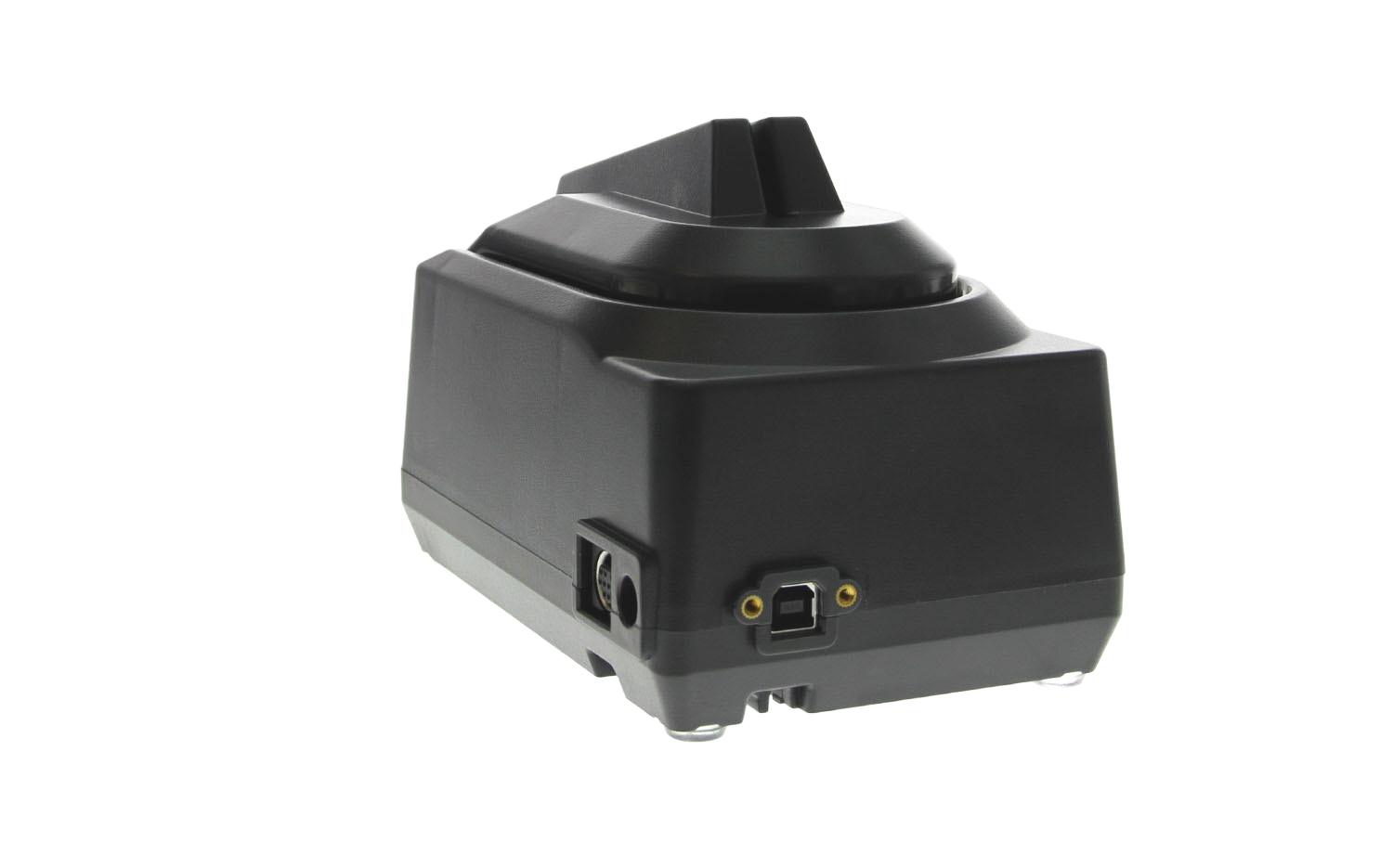

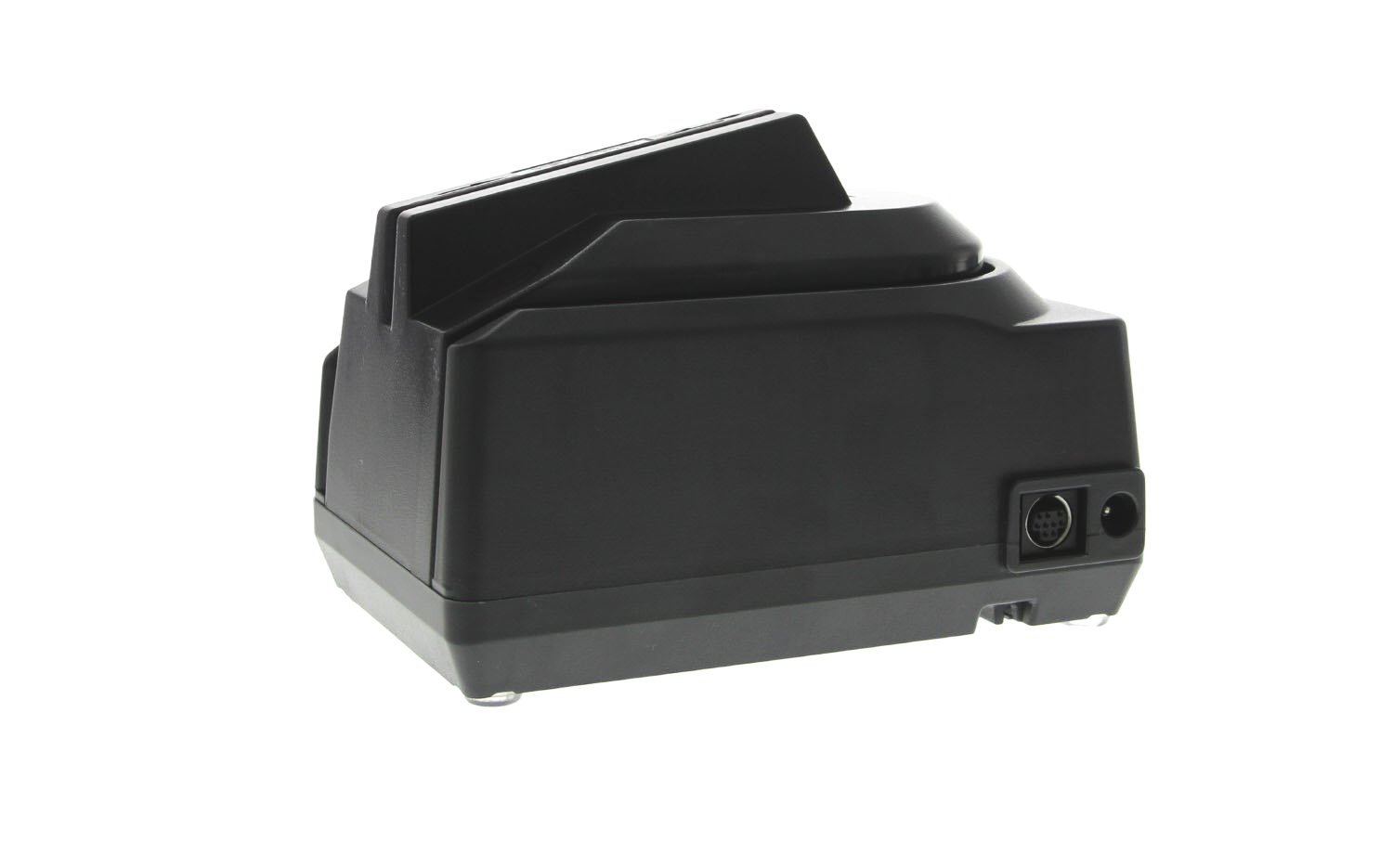

MagTek Mini MICR Check Reader
- MICR Reading: Accurately reads E13-B and CMC-7 MICR fonts.
- Optional MSR: Supports 1-, 2-, and 3-track magnetic stripe cards, including ISO and AAMVA standards.
- Interfaces: Available with USB, RS-232, or Keyboard Wedge interfaces.
- Compact Design: Measures 6.0"" x 4.0"" x 3.18"" (without MSR) or 4.4"" height (with MSR).
- Durability: Designed for high-volume environments with reliable performance.
Overview
The MagTek Mini MICR Check Reader offers a reliable solution for businesses that require efficient check processing. With its small footprint, it fits seamlessly into various point-of-sale systems. The device reads MICR characters in E13-B and CMC-7 fonts and can be configured with an optional 3-track magnetic stripe reader for additional functionality.
Specifications
- Dimensions:
• Without MSR: 6.0"" L x 4.0"" W x 3.18"" H
• With MSR: 6.0"" L x 4.0"" W x 4.4"" H - Weight: Approximately 3 lbs (1.36 kg)
- Check Feed Speed: Up to 17 inches per second
- Power Supply: USB-powered; external power supply included for certain models
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -22°F to 140°F (-30°C to 60°C)
- Humidity: 10% to 90% non-condensing
- Certifications: FCC, CE, RoHS compliant
