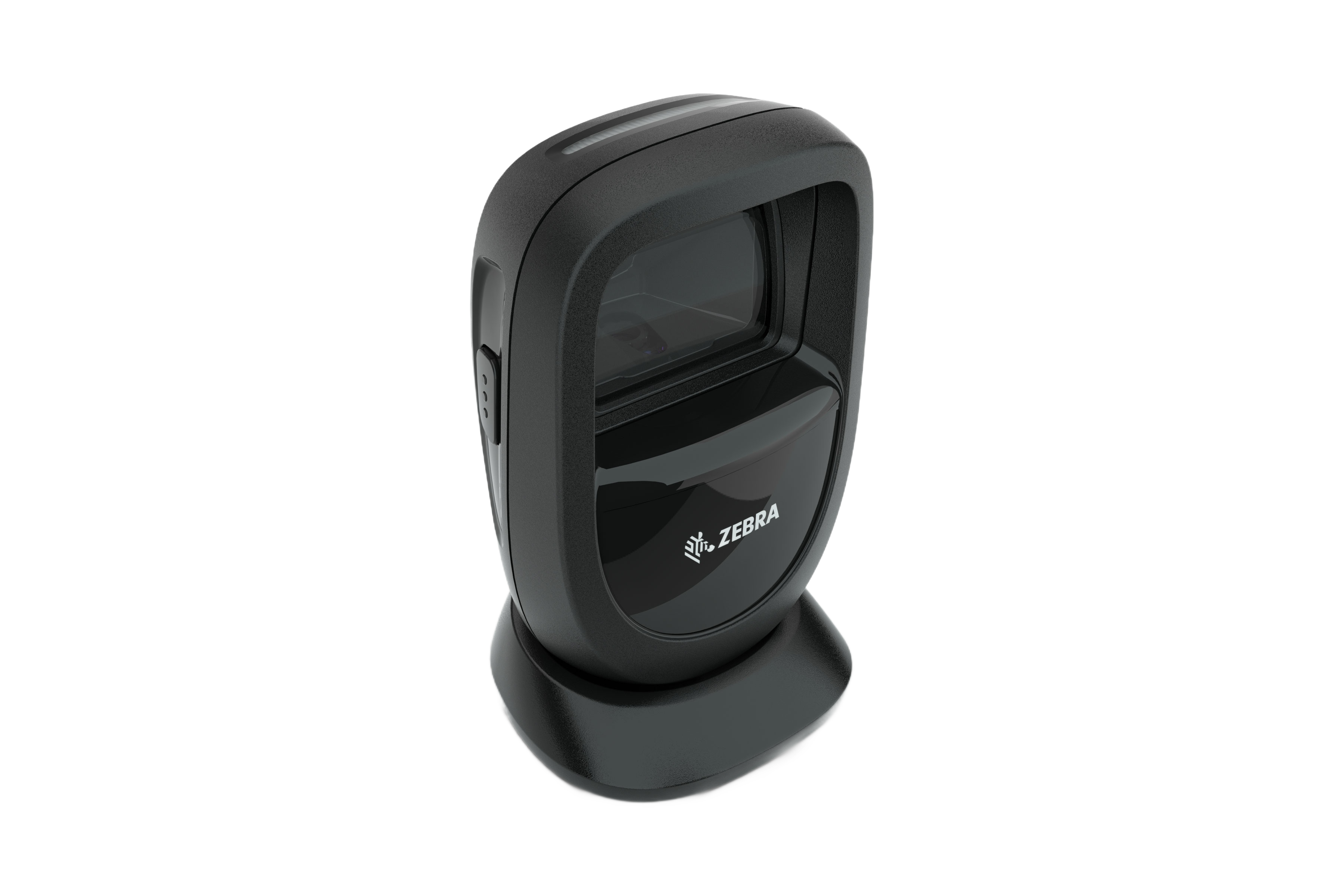

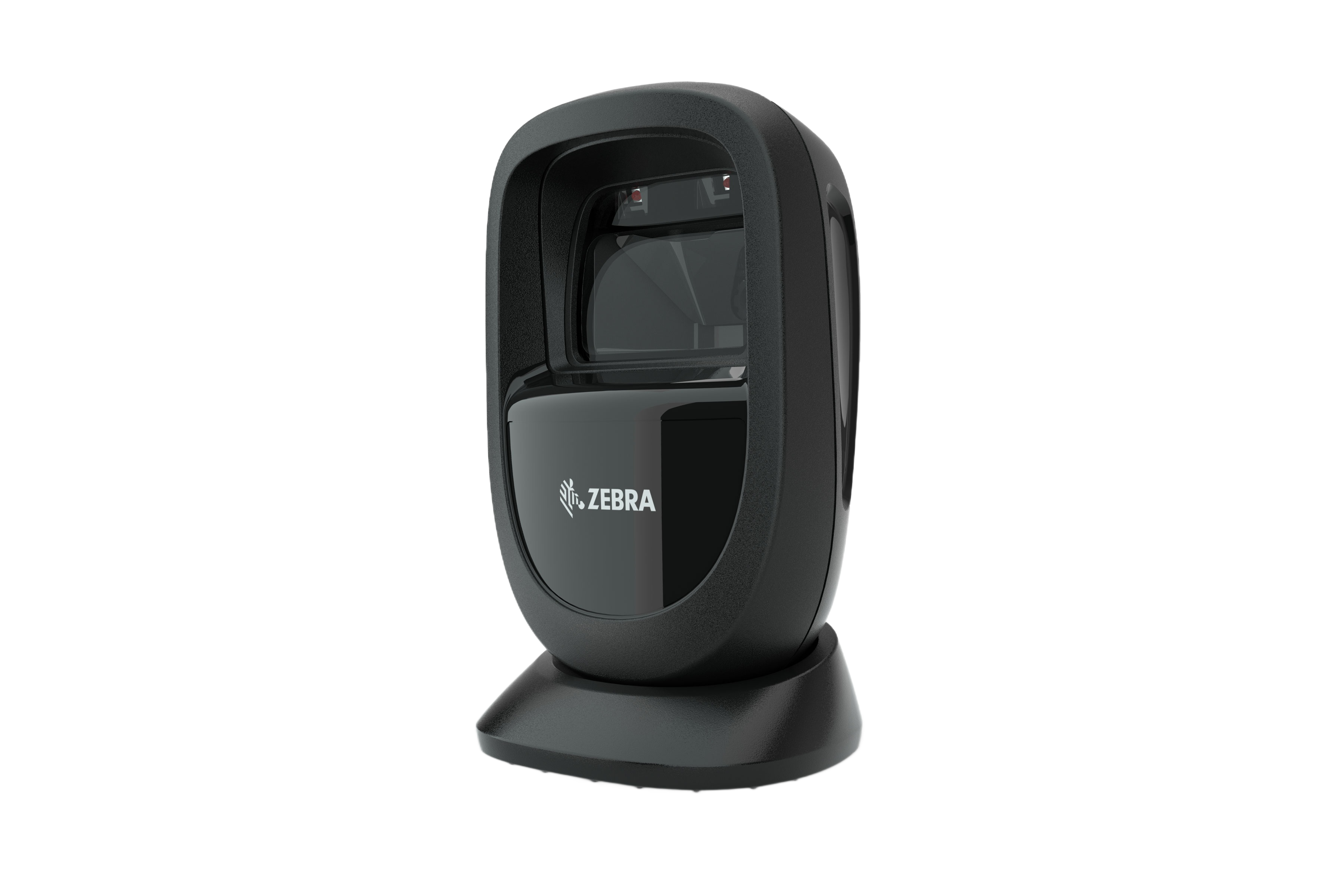

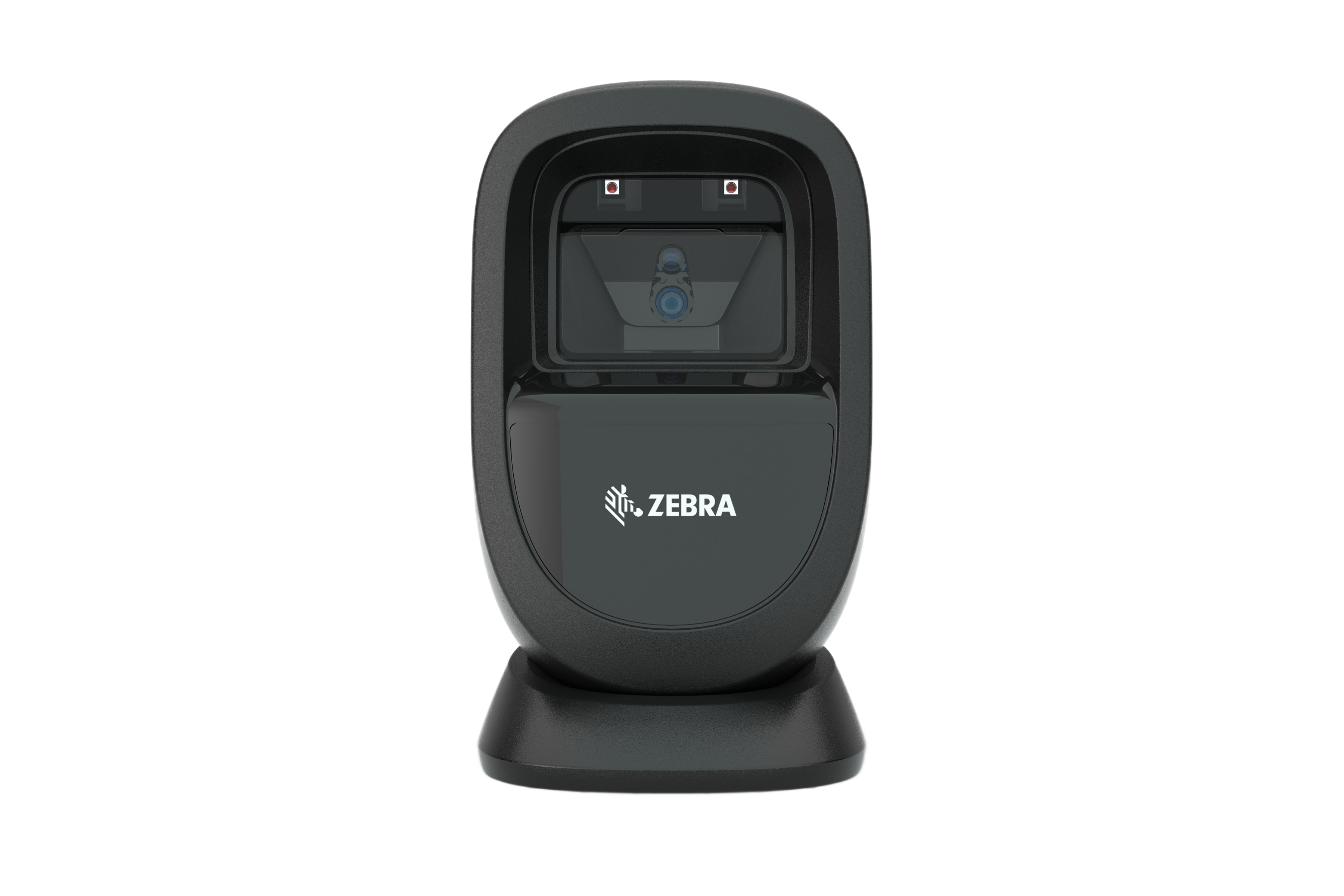

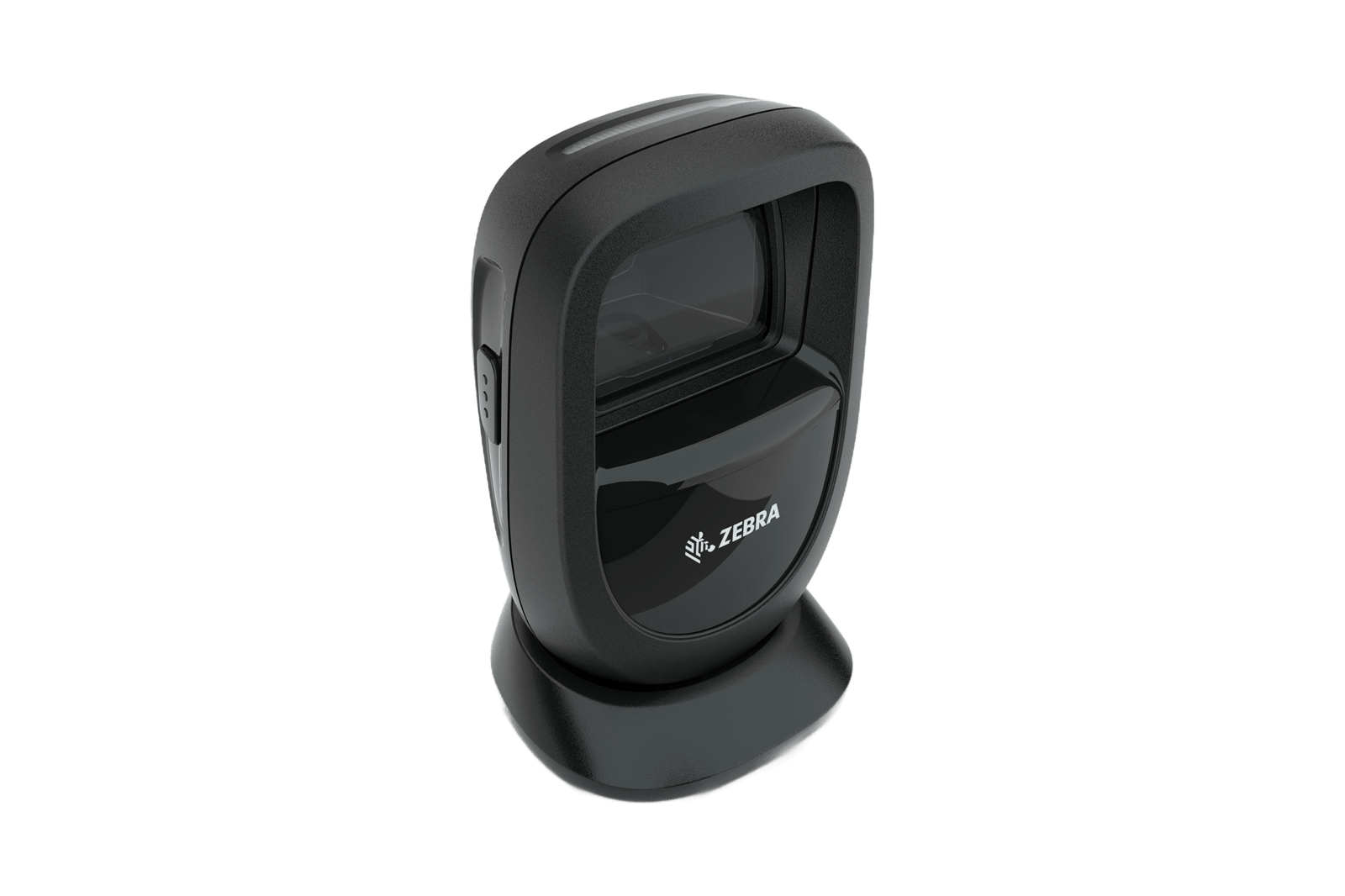

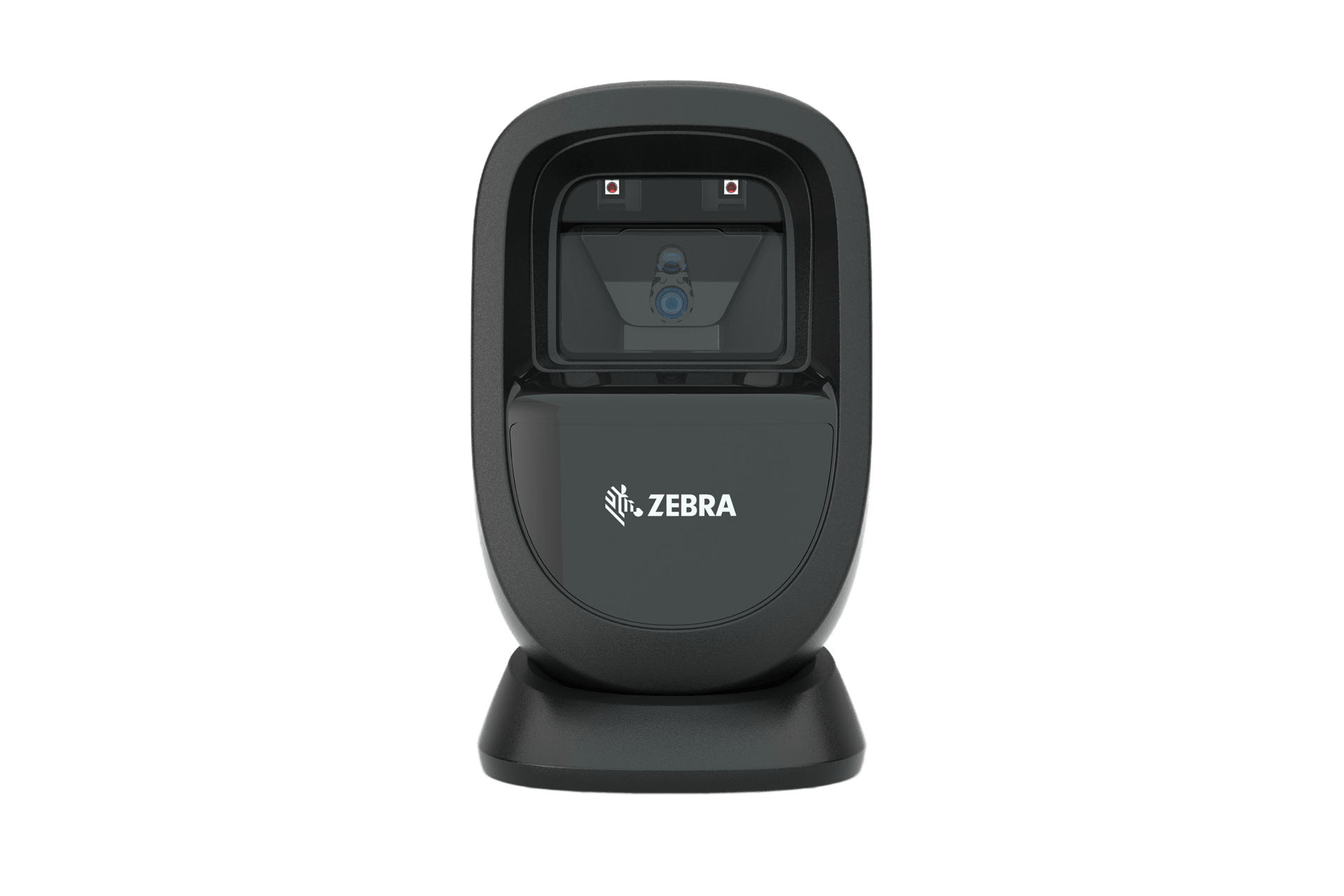

Zebra Hands-Free Scanner DS9208
- Omnidirectional Scanning: Eliminates the need to align barcode and scanner, speeding up the scanning process.
- Versatile Media Compatibility: Reads 1D, 2D, and PDF417 barcodes from paper, mobile phones, and computer displays.
- Compact Design: Small footprint fits in space-constrained areas without sacrificing performance.
- Dual Modes: Supports both hands-free and handheld operation for flexibility.
- Picklist Mode: Allows selection and scanning of a single barcode from a menu or picklist.
- Multi-Code Mode: Enables simultaneous scanning of multiple barcodes, reporting only the selected ones in a pre-defined order.
- Spherical Exit Window: Industry-first design minimizes stray light and reduces reflections, enhancing scanning performance.
- Durable Construction: Withstands multiple 5 ft. (1.5 m) drops to concrete, ensuring reliability in demanding environments.
- Interface Options: Supports USB, RS-232, Keyboard Wedge, and RS-485 (IBM 46xx Protocols) for easy integration.
- Visual and Audible Feedback: Dual LEDs and programmable beeper provide confirmation of successful scans.
Overview
The Zebra DS9208 is a compact, omnidirectional presentation scanner designed for high-performance 1D and 2D barcode scanning. Whether reading barcodes from paper labels or mobile device screens, it offers versatility and efficiency in retail, hospitality, and other customer-facing environments. With both hands-free and handheld modes, the DS9208 enhances productivity and streamlines point-of-sale operations.
Specifications
- Model Number: DS9208
- Dimensions: 5.5"" (H) x 3.2"" (W) x 3.15"" (D)
- Weight: 9.5 oz (269 g)
- Scan Method: Area Imager
- Light Source: Aiming pattern: single dot, 625nm LED; Illumination: 630nm LEDs
- Field of View: 46° Horizontal x 29.5° Vertical
- Motion Tolerance: Up to 90 in./sec (2.3 m/sec)
- Print Contrast: 25% minimum reflective difference
- Supported Symbologies:
• 1D: UPC/EAN, Code 39, Code 128, Code 93, Codabar, Interleaved 2 of 5, Discrete 2 of 5, MSI Plessey, GS1 DataBar
• 2D: QR Code, Data Matrix, Aztec, MaxiCode, PDF417, MicroPDF417, Composite Codes - Interfaces Supported: USB, RS-232, Keyboard Wedge, RS-485 (IBM 46xx Protocols)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: 14°F to 122°F (-10°C to 50°C)
- Humidity: 5% to 85% RH (non-condensing)
- Drop Specification: Withstands multiple 5 ft. (1.5 m) drops to concrete
- Sealing: IP50
- Power Requirements: 5.0 VDC ±10%; Operating Current: 230 mA; Idle Current: 150 mA
- Color Options: Midnight Black, White
