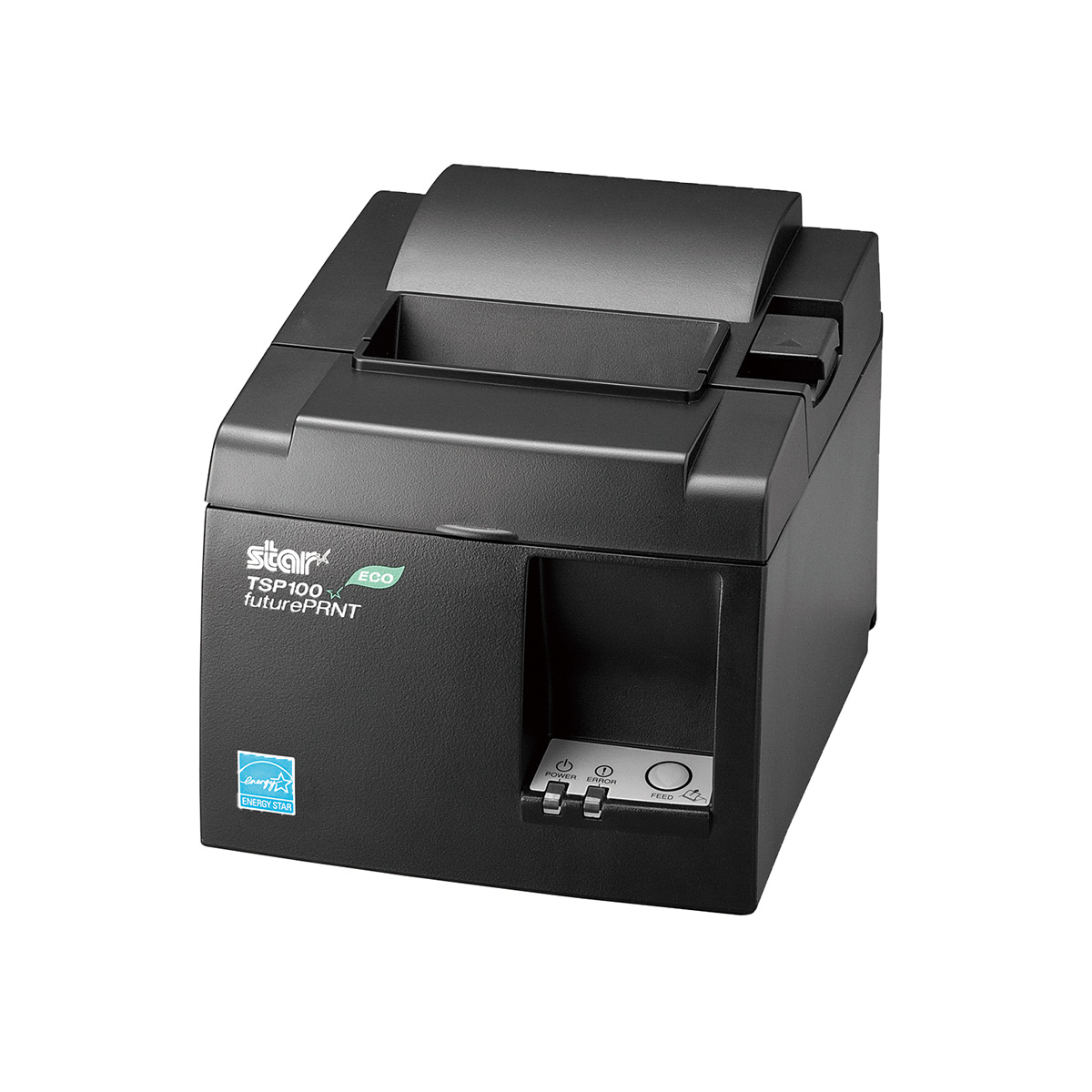

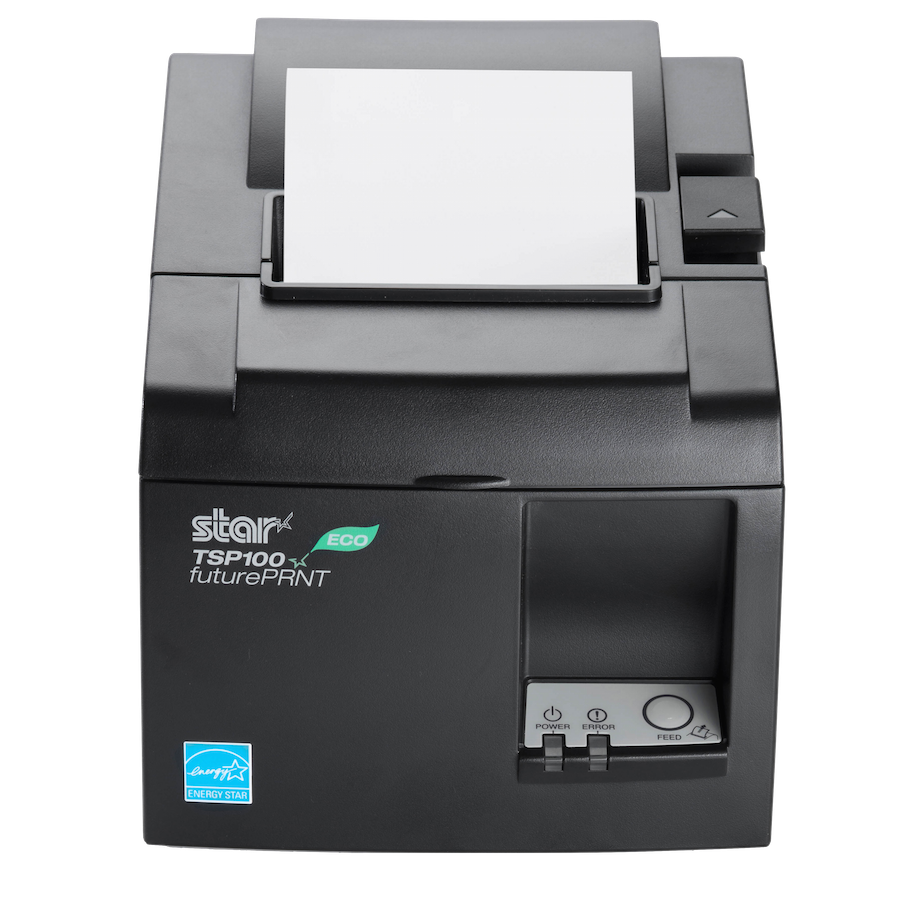

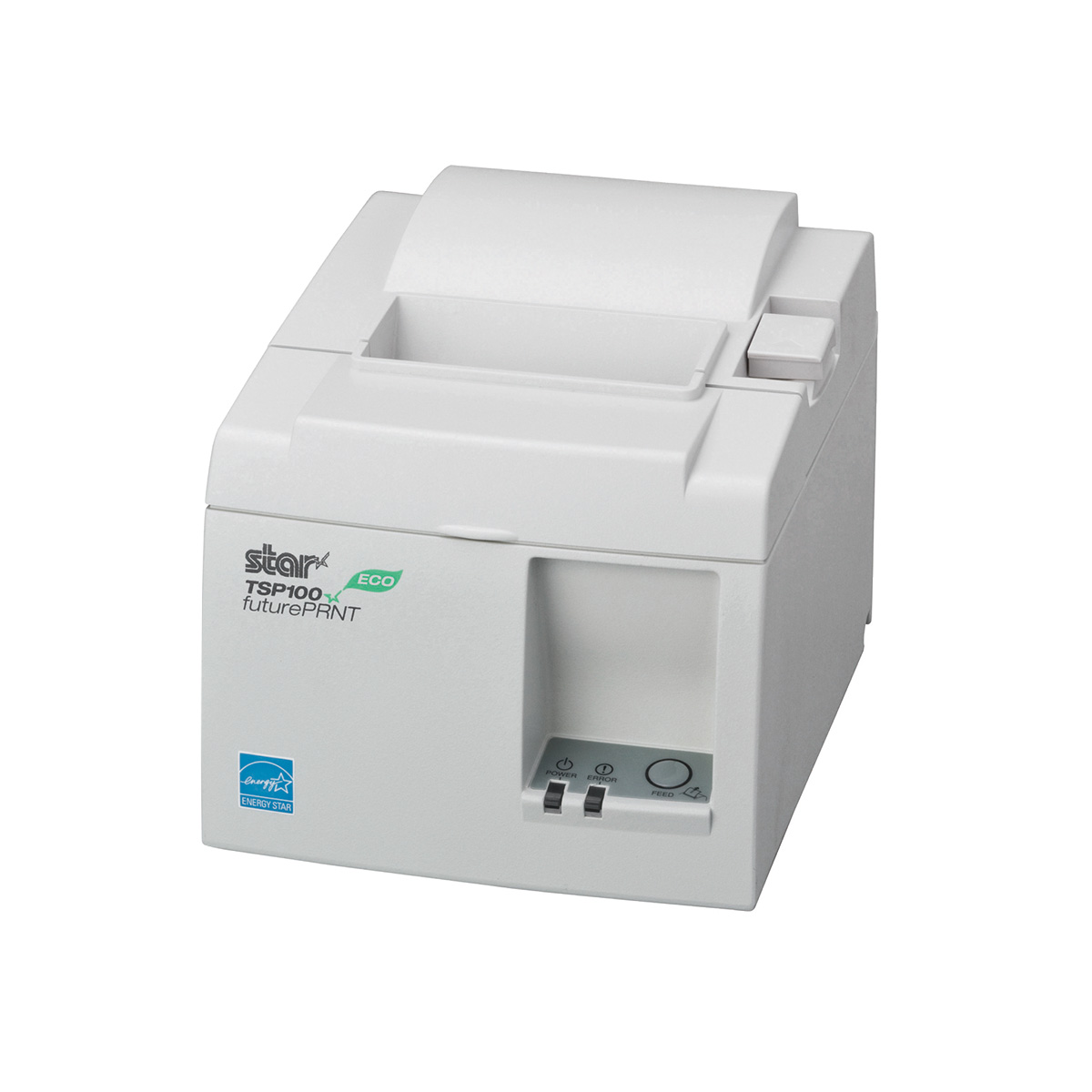

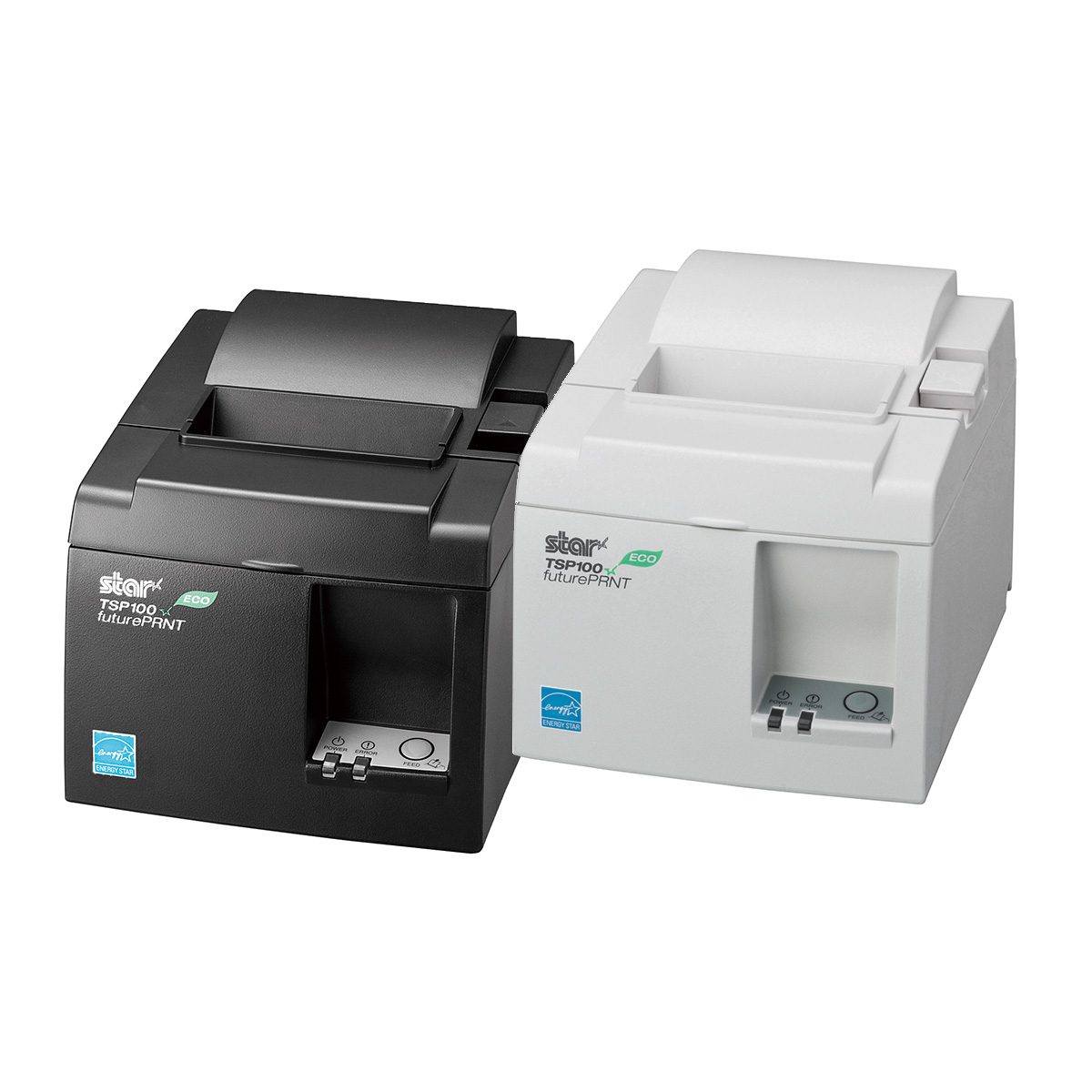

Star Micronics TSP100
- Fast Printing: Prints up to 34 six-inch receipts per minute (180 mm/sec).
- Reliable Performance: MCBF of 60 million lines and guillotine auto cutter rated for 1 million cuts.
- Flexible Paper Support: Handles paper rolls up to 7 inches in diameter and tickets up to 0.15 mm thick.
- Customizable Widths: Adjustable paper widths from 45 mm to 82.5 mm for various printing needs.
- User-Friendly Design: "Drop-In & Print" clamshell loading for fast and easy operation.
- 2D Barcode Support: Prints advanced barcodes like QR Code and PDF417.
- Ticket Management: Integrated ticket stacker prints, cuts, and stacks up to 30 tickets at a time.

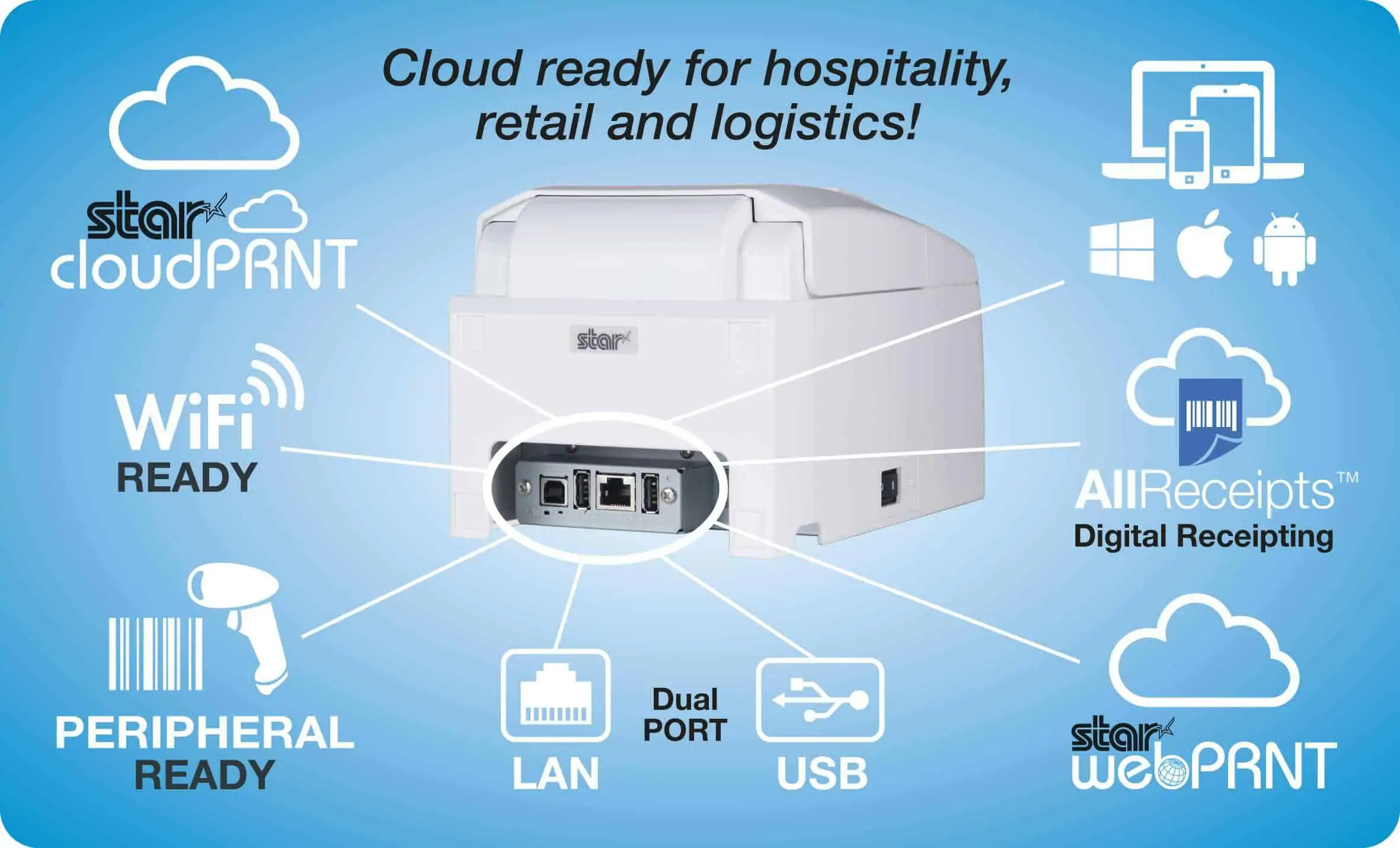

- Upgradable Connectivity: Swappable interface connections for seamless future upgrades.
Overview
The Star Micronics TSP100 is a high-speed, versatile receipt printer designed for merchants needing reliability, flexibility, and ease of use. With advanced features like thick ticket printing, adjustable paper sizes, and future-ready connectivity, it’s the perfect solution for busy retail or restaurant environments.
Specifications
- Printer Method: Direct Line Thermal
- Print Speed: 22 receipts per minute (125 mm/sec)
- Print Resolution: 203 dpi (8 dots per mm)
- Paper Handling: 80 mm standard or 58 mm with paper guide, 0.065 to 0.085 mm thickness, and up to 83 mm roll diameter
- Ease of Use: “Drop-In & Print” paper loading, guillotine (partial cut only), and standard paper out sensor
- Connectivity & Compatibility: Compatible with Windows™, Mac OSX™, Linux CUPS™, supporting Star Mode and ESC/POS™ emulation
- Barcode & Font Support: Supports 9 barcode versions, including PDF417 and Maxicode, with customizable fonts (up to 64 characters per line)
- Dimensions & Weight: 5.59 in x 8.03 in x 5.2 in (142 mm x 204 mm x 132 mm) and 3.81 lbs (1.73 kg)
- Power Supply: Internal power supply with included power cable
- Environmental Conditions: Operates at 5ºC to 45ºC and 10% to 90% humidity (non-condensing)
- Warranty & Accessories: Includes a 3-year warranty, installation software, 58 mm paper guide, wall mount bracket, and interface cable.Included Accessories: Installation CD, futurePRNT Software, 58 mm Paper Guide, Interface Cable, Wall Mount Bracket
Downloads
Quick Reference Guide
TSP100 Gen QRG
