Pax A80
- Payments: Accepts EMV chip, magnetic stripe, QR payment, Apple Pay and contactless payments.
- Screen: 4” HD touch screen.
- Connectivity: 4G, 3G, WiFi, Bluetooth, Ethernet, Dial-Up.
- Security: PCI PTS 5.x or 6.x certified
- Powered by: Android 10
- Front Camera: 0.3MP
- Processor: Cortex A53
- Features: Physical keypad, Printer
- Optional: Battery
Overview

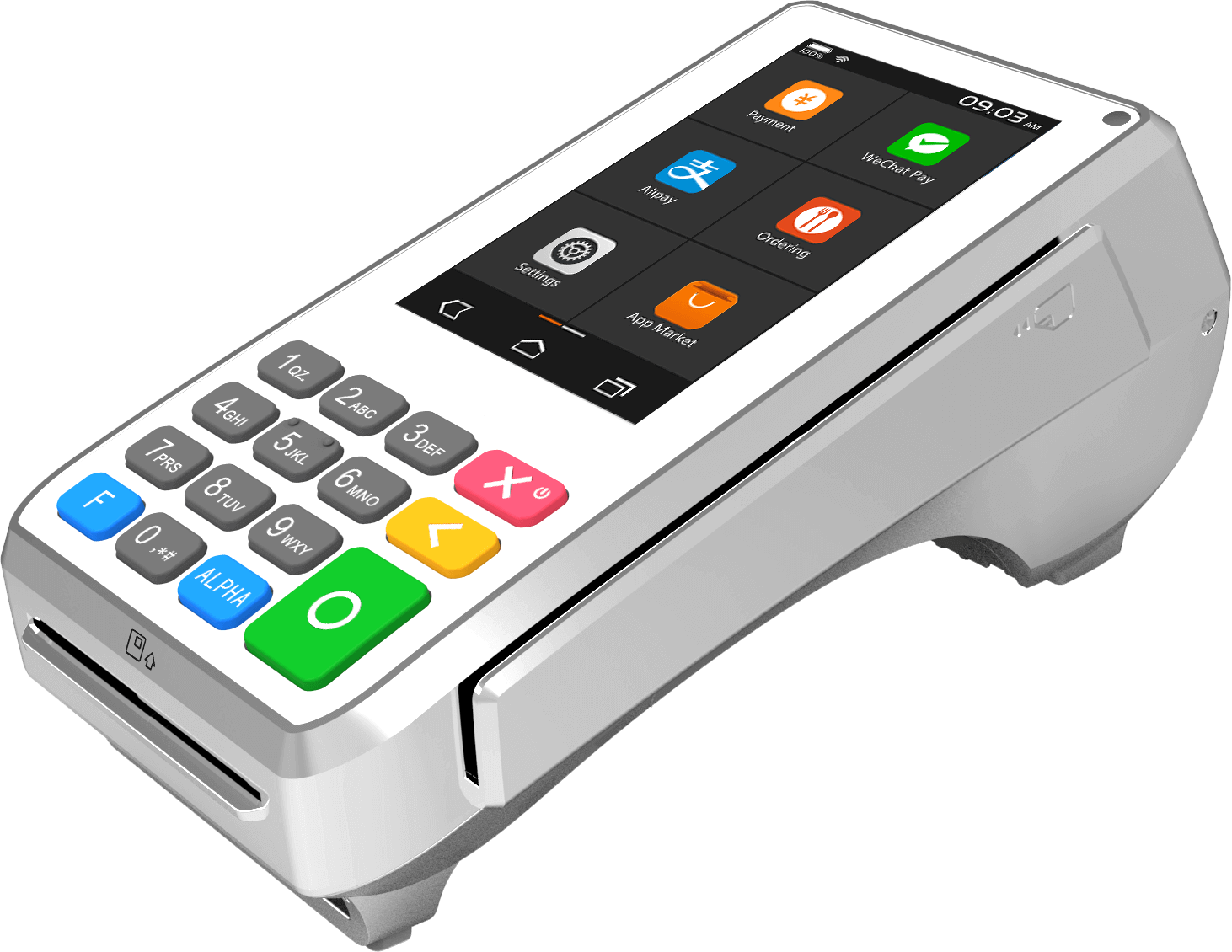

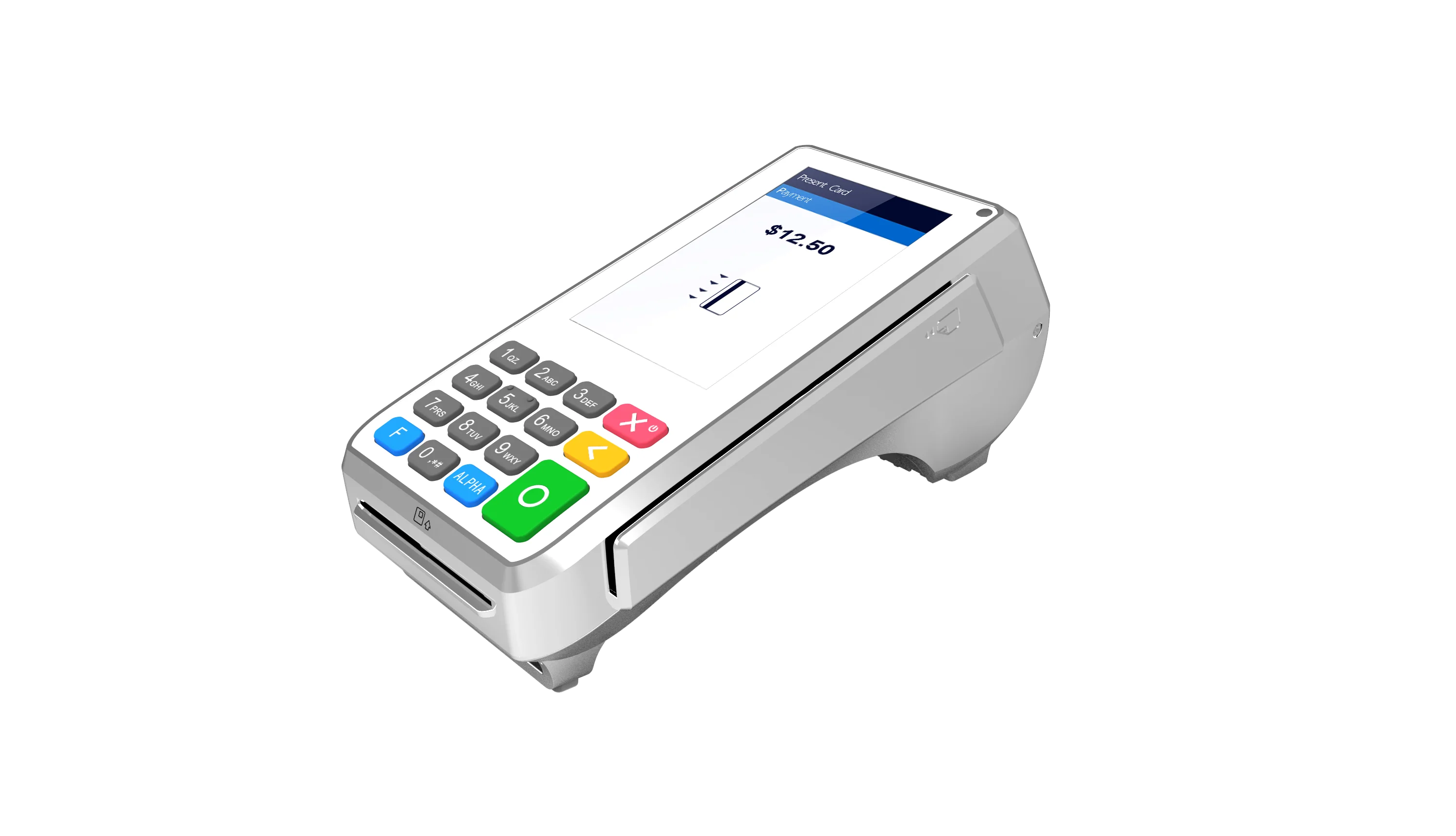

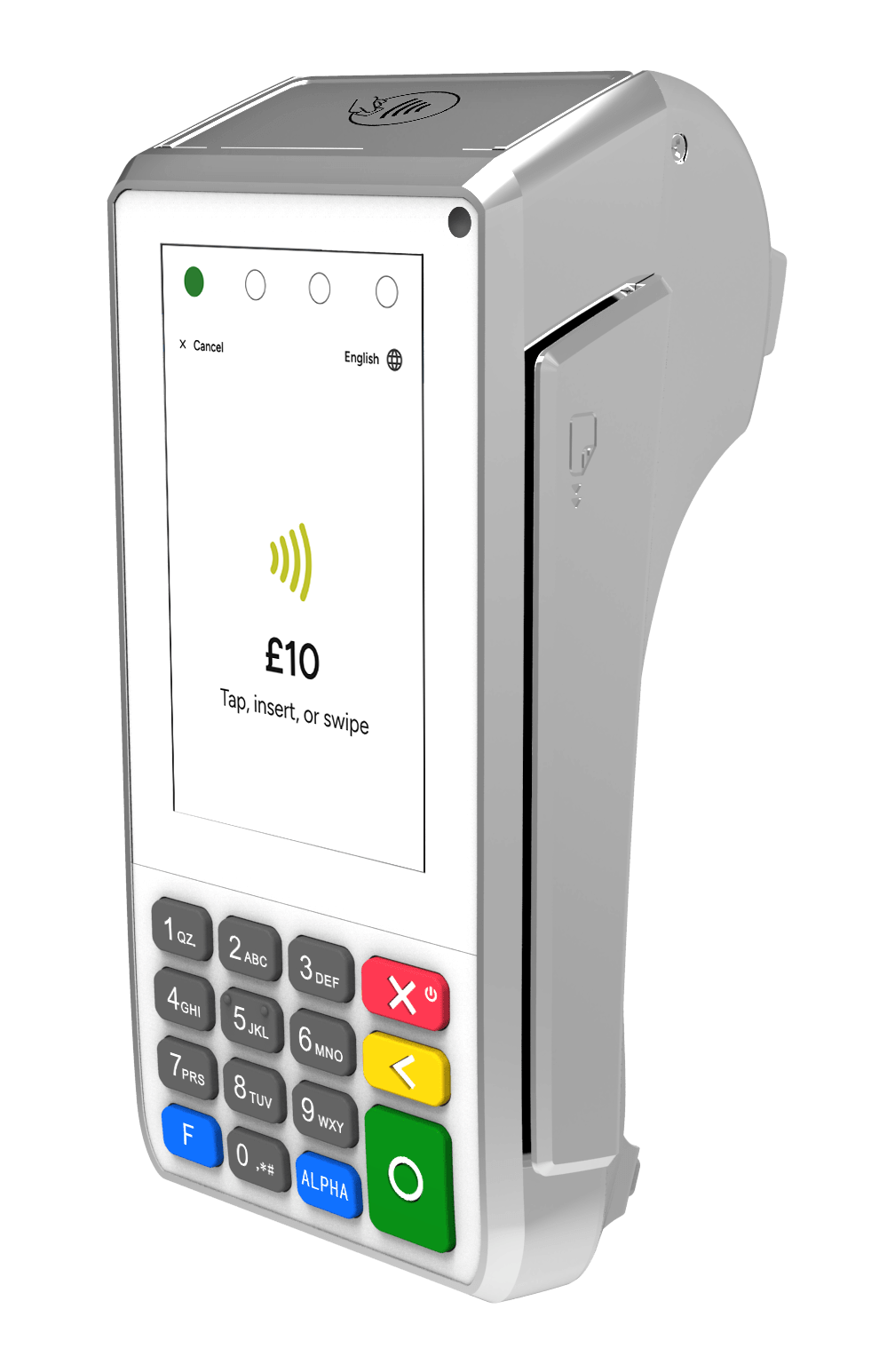

The PAX A80 is a modern Android countertop terminal, versatile enough to also function as a portable device with its optional battery backup. It features a 4” HD touch screen, a physical keypad, and a built-in printer, providing a seamless and efficient payment processing experience. The terminal supports multiple connectivity options including 4G, 3G, WiFi, Bluetooth, and Ethernet, ensuring reliable performance. Key features include a Cortex A53 processor, ability to accept all payments and PCI PTS 5.x or 6.x certification for secure transactions.
Specifications
- Operating System: PAXBiz powered by Android 10
- Processor: ARM Cortex-A53 Quad-Core
- Memory: 8GB Flash, 1GB DDR
- Display: 4” capacitive touch screen
- Magnetic Stripe: ISO 7810, 7811, 7813 Triple track, bi-directional
- Contact Card: EMV Level 1 & 2
- Contactless: ISO 14443 Type A, B | NFC (supports Apple Pay, Google Wallet, Samsung Pay)
- Camera: Not applicable
- Barcode Scanner: Not applicable
- Connectivity: LAN, Wi-Fi (2.4GHz/5GHz), Bluetooth 4.2, 4G
- Printer: Built-in high-speed thermal printer
- Paper Size: 2-1/4" x 50' (57mm x 15.2m)
- Additional Features: Power over Ethernet, PCI PTS 6.x certified, optional stand and privacy shield
Downloads
Product Specification
A80 Gen Specs
Quick Reference Guide
A80 Gen QRG
