Newland P180
- Comprehensive Payment Acceptance: Newland P180 supports EMV chip cards, magnetic stripe cards, contactless payments (NFC), mobile wallets, and QR-code-based transactions.
- High-Performance Hardware: Equipped with a dual-core Cortex A7 processor and secure processor, ensuring smooth operation.
- Integrated Thermal Printer: Not applicable.
- Advanced Connectivity: Offers RS232, USB, Ethernet, and optional Wi-Fi for versatile communication options.
- Robust Security: Compliant with PCI PTS 6.x, ensuring secure transaction processing.
- User-Friendly Interface: Features a 3.5-inch TFT full-color LCD display with capacitive multi-touch support and electronic signature capability.
- Versatile Card Reader: Supports magnetic stripe, smart card (EMV), and contactless card reading.
- Camera Options: 2MP front-facing camera supporting 1D/2D code payments.
Overview

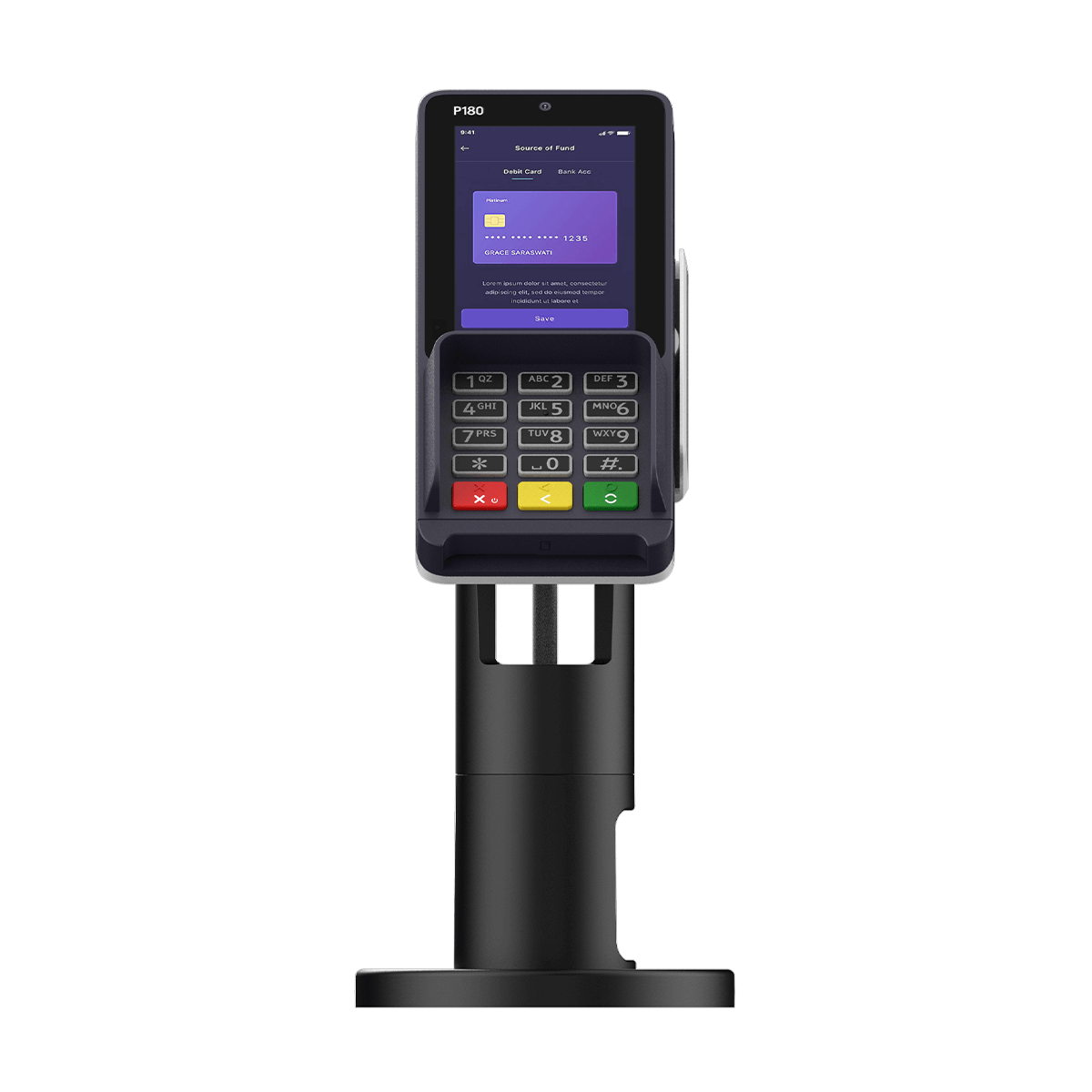

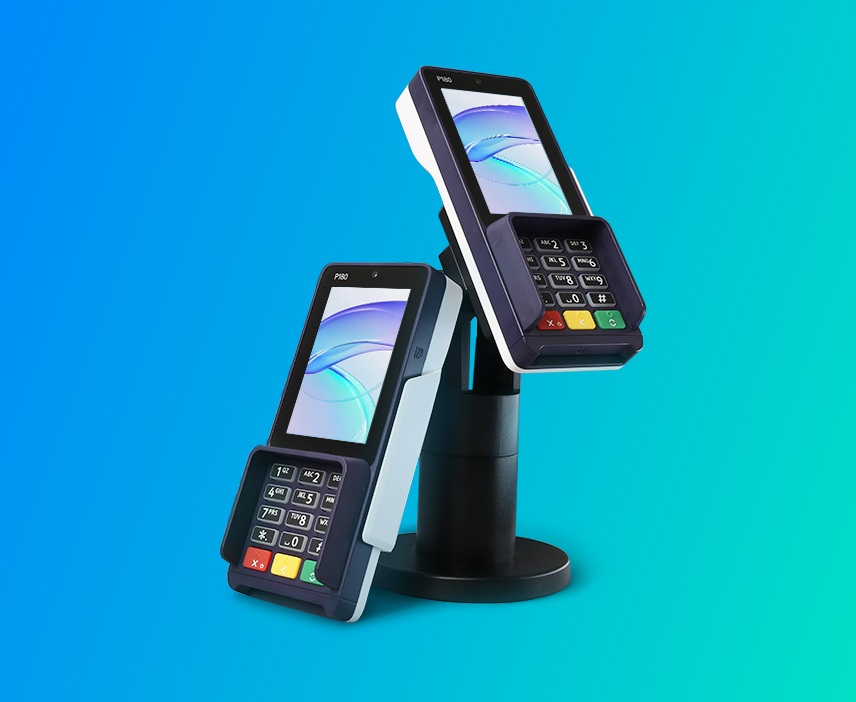

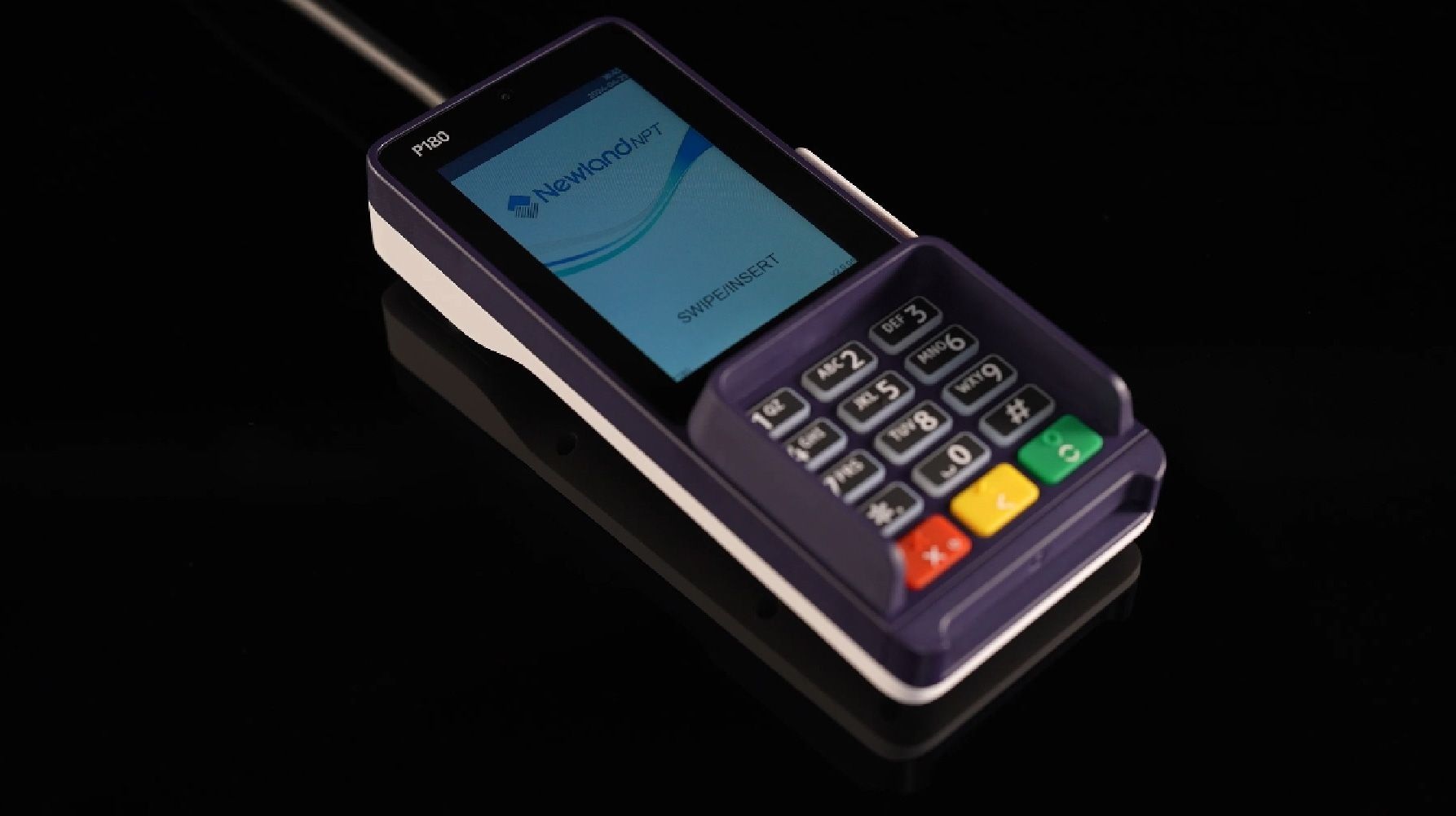

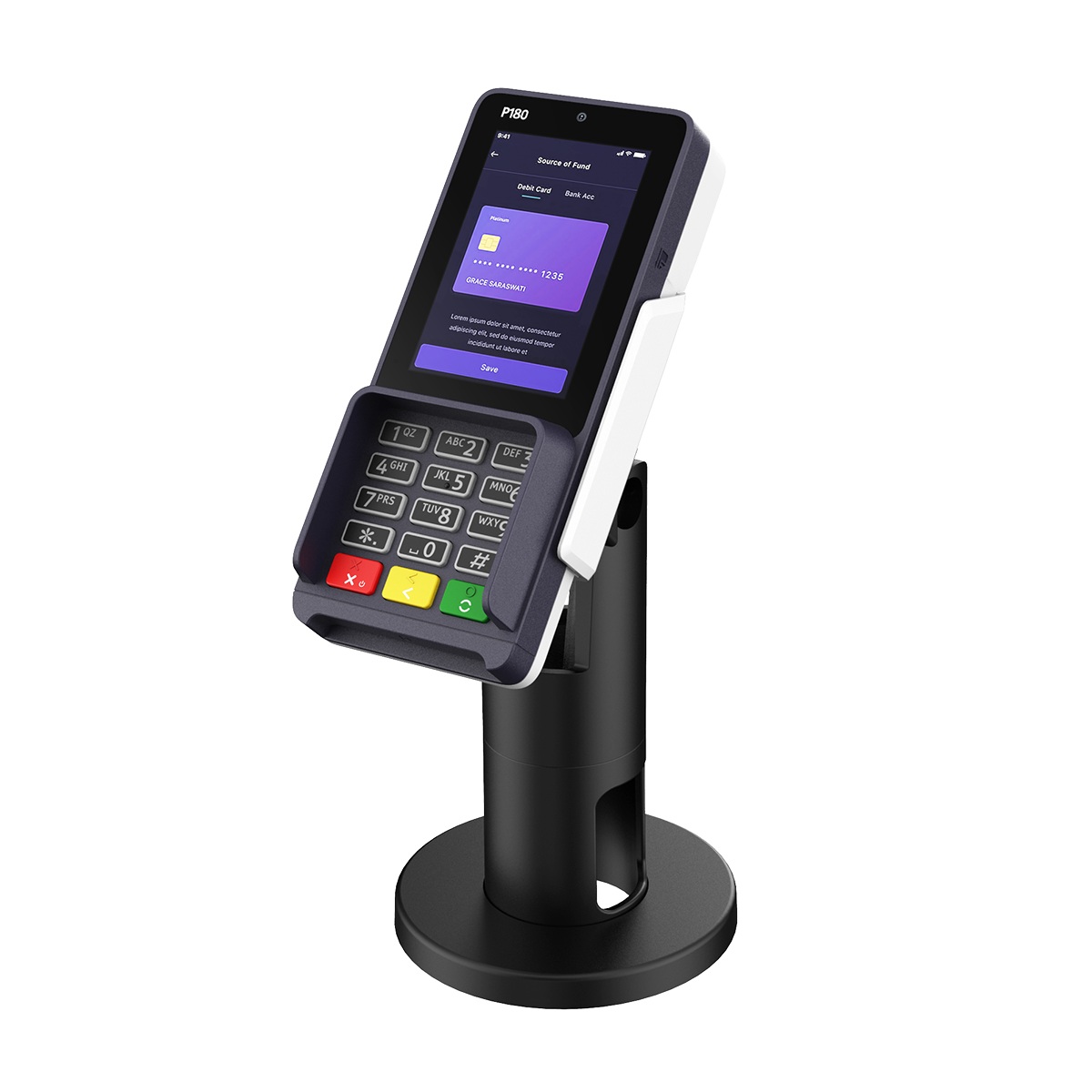

The Newland P180 is a versatile Linux-based PIN pad, designed to integrate seamlessly with POS systems such as the N950S. It supports a wide range of payment methods, including EMV chip cards, magnetic stripe cards, contactless payments (NFC), mobile wallets, and QR-code-based transactions. With its robust hardware, comprehensive connectivity options, and advanced security features, the P180 enhances customer engagement and streamlines transaction processes.
Specifications
- Operating System: Linux
- Processor: Dual-core Cortex A7, 1GHz + Secure Processor
- Memory: 256MB RAM, 256MB FLASH; MicroSD card slot up to 32GB
- Display: 3.5-inch TFT full-color LCD, 320 x 480 resolution, capacitive touchscreen
- Card Readers:
• Magnetic Stripe Reader: Tracks 1/2/3, bi-directional
• Smart Card Reader: EMV L1 & L2 certified
• Contactless Reader: Supports ISO/IEC 14443 Type A/B, MIFARE, Felica, NFC - Connectivity:
• Ports: RS232, USB Device, Ethernet 10/100M (Optional), Wi-Fi 2.4GHz/5GHz (Optional) - Camera: 2MP front-facing camera
- Audio: Speaker 1.5W (Optional)
- Keypad: 10 x numeric keys, 5 x function keys (Cancel, Enter, Backspace, *, #), backlit
- Card Slots:
• SAM: 2 slots - Power Supply:
• Input: AC 100~240V;
• Output: DC 5V/2A; PUSB (Optional) - Dimensions: 163mm (L) x 74mm (W) x 31mm (H) without Privacy Shield; 163mm (L) x 74mm (W) x 46mm (H) with Privacy Shield
- Weight: Net weight 252g; Gross weight 713g
- Operating Temperature: Not specified
- Storage Temperature: Not specified
- Certifications: PCI PTS 6.x
