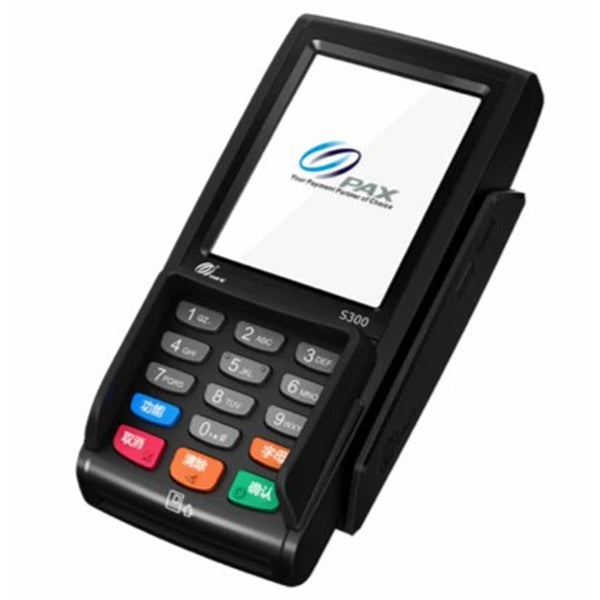

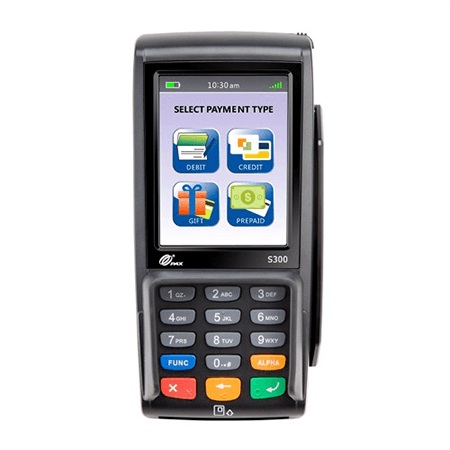

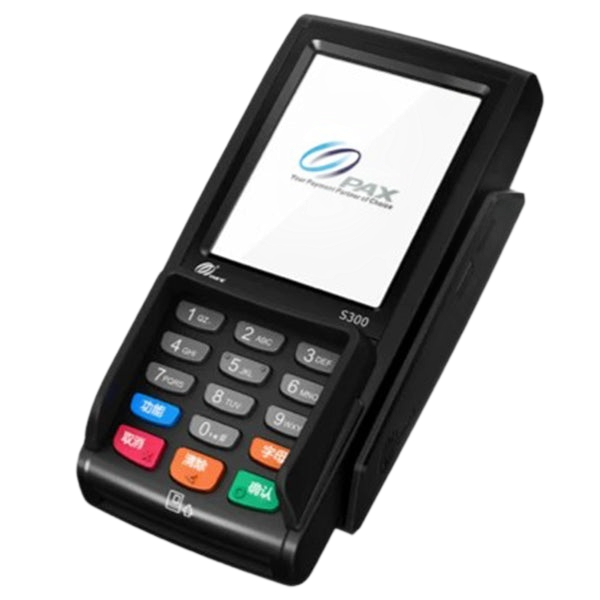

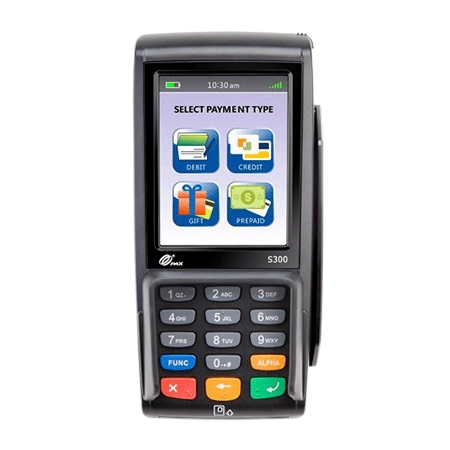

PAX S300
- Comprehensive Payment Support: PAX S300 accepts EMV chip cards, magnetic stripe cards, and NFC/contactless payments like Apple Pay and Google Wallet.
- Enhanced Security: Compliant with PCI PTS 4.x and SRED standards, ensuring secure transaction processing.
- User-Friendly Interface: 3.5-inch color TFT LCD touchscreen with a resolution of 240 x 320 pixels.
- Multiple Connectivity Options: Supports RS232, USB, and Ethernet connections for flexible integration.
- Compact Design: Sleek form factor measuring 6.57"" x 3.19"" x 1.97"", ideal for retail countertops.
- Audio Feedback: Integrated speaker providing audible transaction cues.
- Robust Memory: Equipped with 128MB Flash and 64MB DDR RAM for efficient operation.
- Versatile Card Reader: Supports magnetic stripe, smart card (EMV), and contactless card reading.
Overview
The PAX S300 is a high-performance retail payment solution tailored for multilane merchants seeking enhanced transactional security. It combines EMV chip, magnetic stripe, and contactless payment capabilities within a sleek, compact design. Featuring a 3.5-inch color touchscreen and robust encryption standards, the S300 ensures secure and efficient payment processing. Its versatile connectivity options, including USB and Ethernet, facilitate seamless integration into various POS systems.
Specifications
- Processor: 32-bit ARM11
- Memory: 128MB Flash, 64MB DDR RAM
- Display: 3.5-inch TFT QVGA touchscreen, 240 x 320 pixels
- Card Readers:
• Magnetic Stripe: Tracks 1/2/3, bi-directional
• Smart Card (EMV): EMV L1 & L2 certified
• Contactless: Supports ISO/IEC 14443 Type A/B, MIFARE, Felica, NFC - Connectivity: Ports: 1 x RS232, 1 x USB2.0 OTG, 1 x Ethernet
- Security Certifications:
• PCI PTS 4.x SRED
• EMV L1 & L2
• Visa payWave
• MasterCard PayPass
• American Express ExpressPay
• Discover D-PAS
• JCB J/Speedy
• Interac Flash
• UnionPay qUICS - Dimensions: 6.57"" (L) x 3.19"" (W) x 1.97"" (H)
- Weight: 0.64 lbs
- Operating Temperature: 32°F to 122°F
- Storage Temperature: -4°F to 158°F
- Operating System: Prolin / PaxMe
- Audio: Integrated speaker
- SAM Slots: 3
