Valor VL300
- Payments: Accepts EMV chip, magnetic stripe, and contactless payments.
- Screen: Large scale 3.5" touchscreen.
- Connectivity: Ethernet
- Security: PCI PTS 5.0 certified PIN pad
- Features: Built in customer rating system USB and serial communication Digital Signature Capture Smart tipping Automatic software updates Backlit keys
Overview

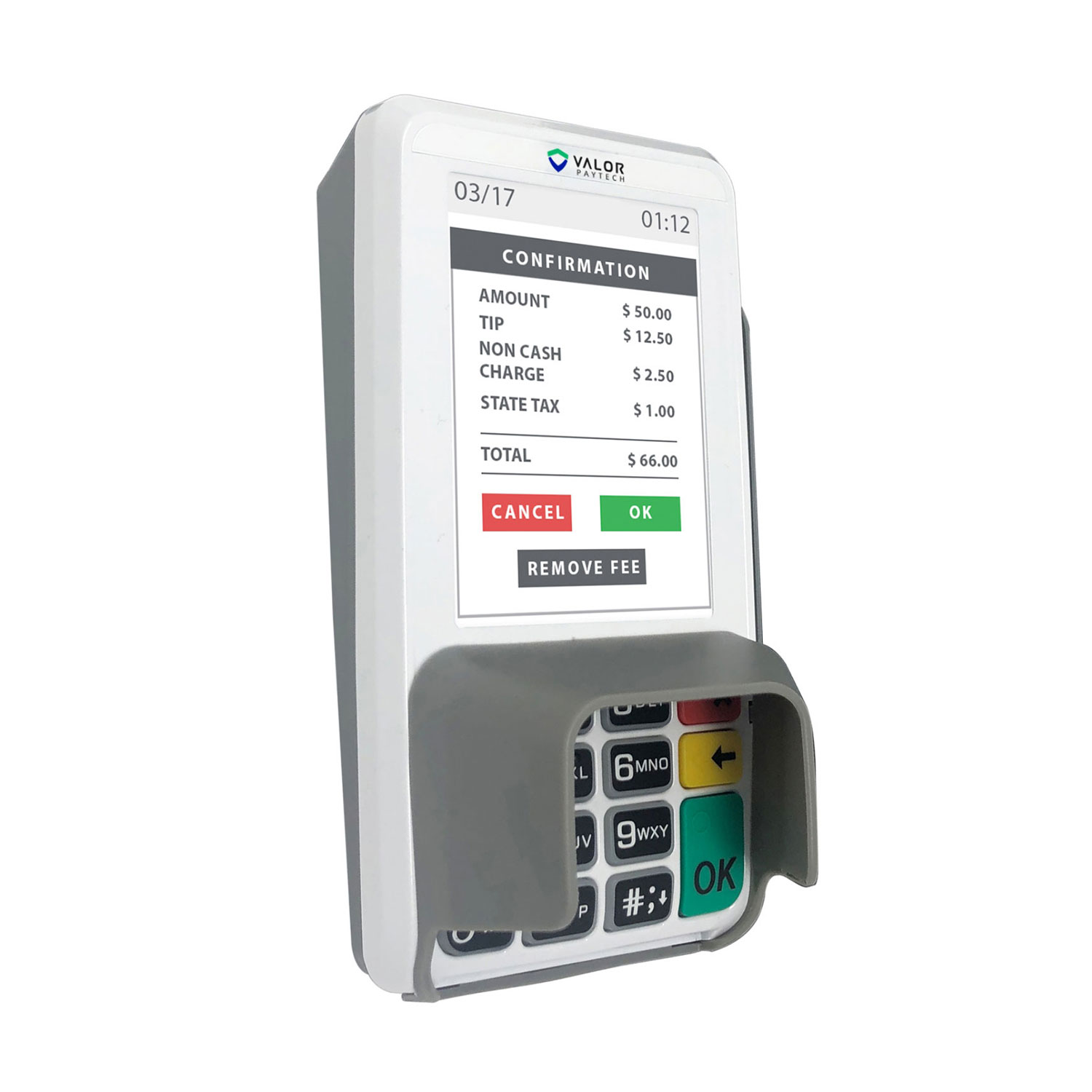

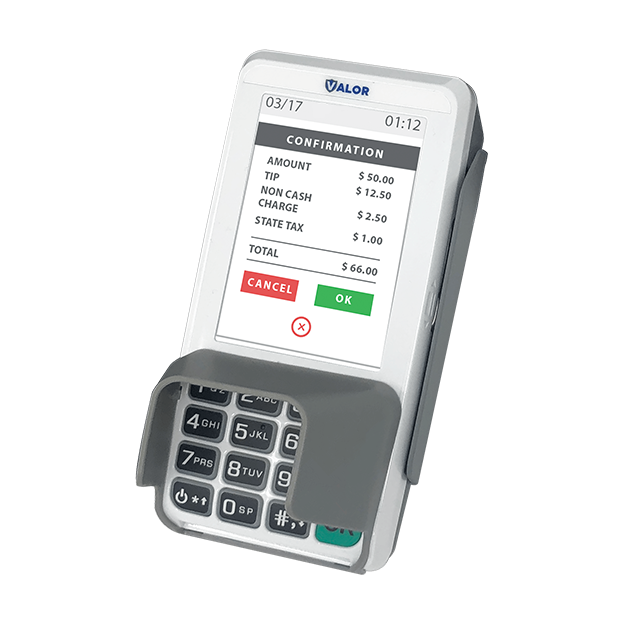

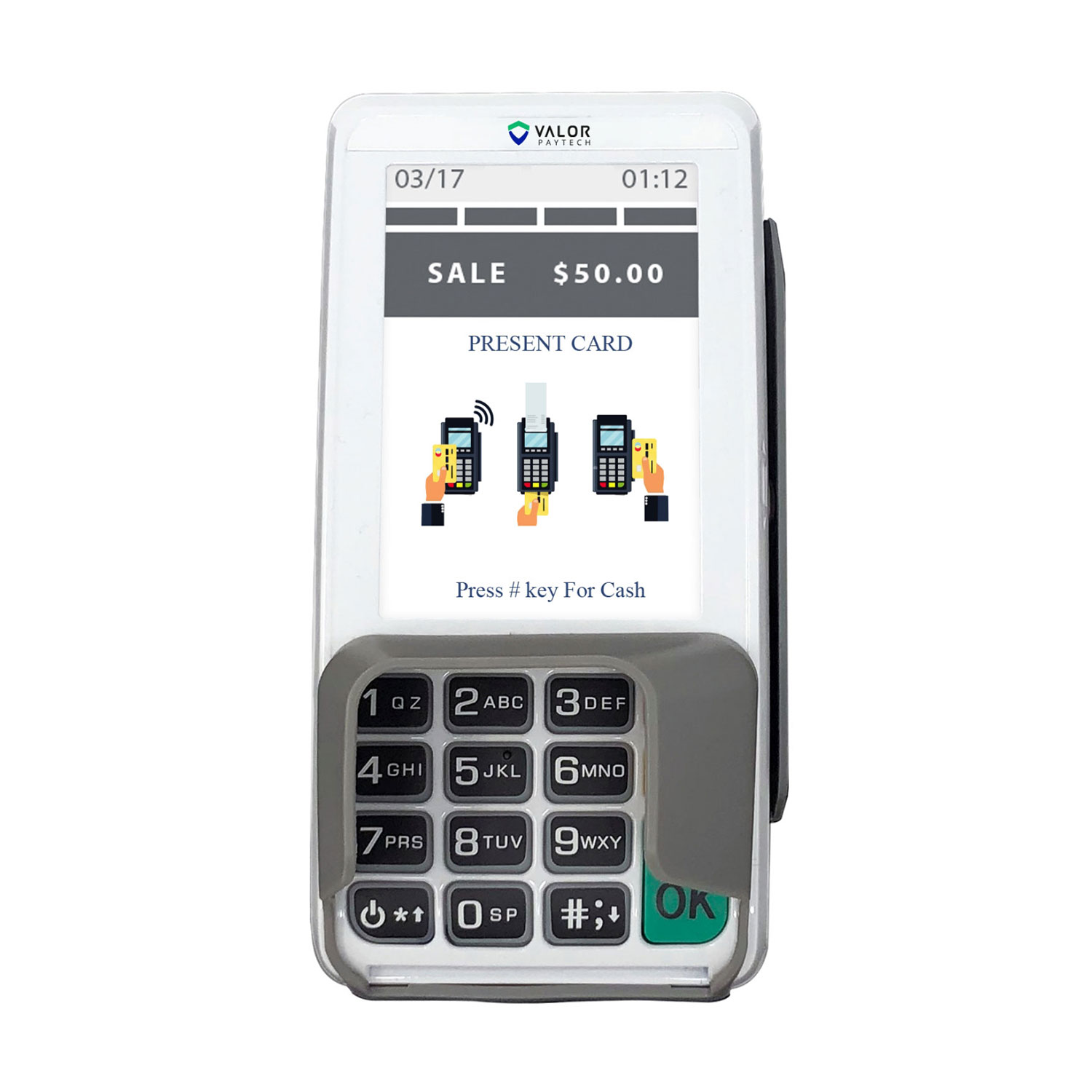

The VL300 is a reliable countertop POS terminal designed to streamline payment processing. It features a 3.5” color touchscreen, supports multiple payment methods, and offers Ethernet connectivity. Key features include backlit keys, smart tipping, automatic software updates, digital signature capture, and a built-in customer rating system. The device is PCI PTS 5.x certified, ensuring secure transactions.
Specifications
- Operating System: Secure Linux-based OS
- Processor: 32-bit secure microprocessor
- Memory: Flash: 256 MB, DDR RAM: 128 MB
- Display: 3.5” Color TFT LCD (320 x 480 pixels) with touchscreen
- Magnetic Stripe: ISO 7810, 7811, 7813 Triple track, bi-directional
- Contact Card: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1
- Contactless: ISO 14443 Type A, B | ISO 18092 NFC (Mifare & Sony FeliCa, Working Frequency 13.56 MHz)
- Camera: Not applicable
- Barcode Scanner: Not applicable
- Connectivity: Wi-Fi, Ethernet, USB, Serial
- Printer: Built-in thermal dot receipt printer
- Paper Size: 2-1/4" x 85' (57mm x 25m)
- Additional Features: Smart Tipping, Digital Signature Capture, Built-in Customer Feedback Rating System, Automatic Software Updates
Downloads
Product Specification
VL300 Gen Specs
Quick Reference Guide
VL300 QRG
